|Motor Type:||DC Motor||Limit Switches:||WITHOUT|
|IP Rating:||20%||Item Name:||Electric Hydraulic Actuator|
|Movement:||Kinds Of Motion||Max. Load:||8000N|
|IP Rating:||IP65||Warranty:||1 Year|
Thanks for browsing our web.❤
It's our pleasure to have you here.
Lisa Hao comes from China, one of the linear actuator manufacturers in Wuxi city.
We're not only selling the linear actuator but also do something for society.
If you buy 1 pc linear actuator, We will donate 1 RMB to the Wuxi Animal Protection Volunteer Association as your name.
If you have friends in Wuxi who want to adopt a dog/cat, kindly contact me,
We will do an interview and send a form to fill in.
Welcome to visit the base and do something for the homeless animals!
Contact me: +86 18762658863
Now we will start to introduce our products! ❤

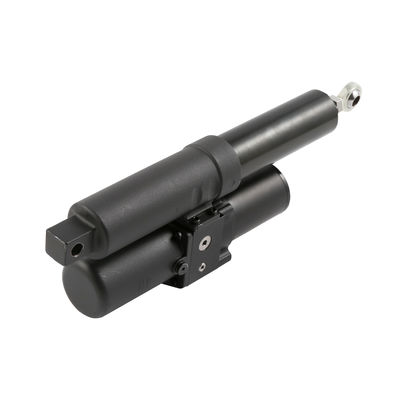

The electric hydraulic linear actuator featuring an integrated motor, pump, valve, and cylinder. The electric hydraulic linear actuator is an entirely self-contained unit with no external piping, thus eliminating the possibility of oil leakage. The oil tank is sealed and that allows for no restrictions on the mounting position. The electric hydraulic linear actuator is lightweight and compact and is suitable for both indoor and outdoor applications.
Specs of electric hydraulic linear actuator
Input voltage: 12VDC/24VDC
Load capacity: 8000N
Stroke length: 50mm-400mm
Mounting HOLES: φ14
Screw: ACME Screw
Duty cycle: 20%
Operational temperature: -40℃~65℃
Limit switch: Without
IP grade: IP65
Housing: Stainless steel
Wire length: 0.5m
Mounting length of electric hydraulic linear actuator
For stroke length below 14’’ (350mm)
L min = Stroke Length +6’’(150mm)
L max = Stroke Length X2 + 6’’(150mm)
HOLE TO HOLE DIMENSIONS (electric hydraulic linear actuator)
SPEED IN MM PER SECOND (electric hydraulic linear actuator)
|Code||Max load(N)||Speed (mm/s)|
More Different Linear Actuators For You Choose:
|Mini linear actuator||Sweeper car|
|Max load 1200N||Dog treadmill|
|Max speed:100mm/s||LED Car|
|Duty cycle:25%||Arrow board trail|
|IP grade:IP65||braking system|
|High force linear actuator|
|Max load 12000N||AGV|
|Max speed:38mm/s||Sweeper car|
|Duty cycle:20%||Lawn mover|
|Limit switch:Inner||Harvesting machine|
|IP grade:IP66||Robotic vehicles|
|Noise level:70db-75db||Solar tracker|
|Solar tracker linear actuator|
|Max load 12000N|
|Micro linear actuator|
|Max load 2000N||Sweeper car,|
|Max speed:15mm/s||Lawn mover,|
|Limit switch:Inner||Dog treadmill,|
Applications of Electric Hydraulic Actuator:
It is popular to see Service trucks or trailers are equipped with LINEAR ACTUATOR KIT.
Quality Without Question
Our attention to quality is embedded in our culture. It’s just the way we work. First, we make sure all employees have the training and tools to take individual responsibility for quality and to produce superior results. We make sure we are professional in the linear actuator field.
Then, we use QA/QC processes to offer a truly comprehensive approach — all focused on identifying and eliminating potential issues of linear actuator products before they become a costly reality...
