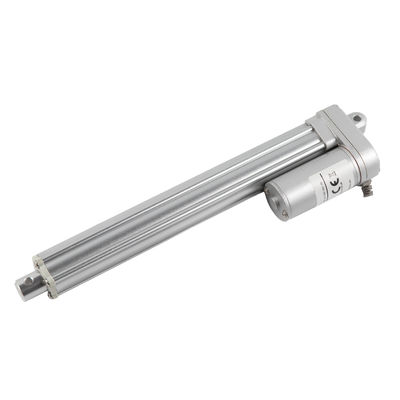

Metal Gearbox Electric Linear Rod Actuator 80kg Compact Size 12 Inches Stroke

I'm Online Chat Now

Metal Gearbox Electric Linear Rod Actuator 80kg Compact Size 12 Inches Stroke

Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke
Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke

Large Image :  Metal Gearbox Electric Linear Rod Actuator 80kg Compact Size 12 Inches Stroke

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: Electric Rotary Linear Actuator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: carton box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

Metal Gearbox Electric Linear Rod Actuator 80kg Compact Size 12 Inches Stroke

Description
Permanent Magnet Motor: 12-24-36-48 Vdc Lead Screw: ACM
Gearbox Type: Metal Aluminum Push Rod: YES
Maintenance: Maintenance-free Customized Product: YES
Optional: Stepper Motor Movement: Kinds Of Motion
Feature: Water-resistant, Dust-resistant , Pollution-resistant Samples: Acceptable
High Light:

miniature rotary actuator

,

rod style actuator

12v/24vdc Electric Rotary Actuators Linear 12inches Stroke 80kg Force, Compact Size, High Speed Electric Piston



Specification of Electric Rotary Linear Actuator:



Voltage: 12/24/36/48V
Force: 1200N
Max speed: 22mm/s@200N
Aluminum Alloy outer & inner tube
Powder metal gearbox
Stronger motor
IP65
Widely used in mobile vehicle motion, tailgate lift, broom/brush lift, cover lift
Stroke: 50-600mm option
Sensor type: POT



80kg Electric Linear Rod Actuator , Small Electric Piston Actuator 12 Inches Stroke

Linear Actuator  Stroke ±2(mm) Mounting dimensions±3(mm) Without Feedback
Stroke 50 100 150 200 250 300 350 400 450
Size 155 205 255 305 355 420 470 520 570
Linear Actuator  Stroke ±2(mm) Mounting dimensions±3(mm) With Potentiometer
Stroke 50 100 150 200 250 300 350 400 450
Size 185 235 285 335 385 450 500 550 600



Features of Electric Rotary Linear Actuator:



- Simple installation requires only power source and switch.

- The motion is safe and reliable.

- The structure is completely sealed to prevent leakage and dust.

- Small size and light weight makes flexible mounting in any position.



Electric Rotary Linear Actuator With Feedback

Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke 0



Electric Rotary Linear Actuator Without Feedback

Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke 1







We are a professor company on linear actuators; we have different linear actuators with different specifications:

  • Mute linear actuators
  • Heavy duty linear actuator
  • Light duty linear actuator
  • High force linear actuators
  • Mini Linear Actuator

Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke 2Metal Gearbox  Electric Linear Rod Actuator 80kg  Compact Size 12 Inches Stroke 3



All our linear actuators are fully customizable. Choose from our wide range of linear actuators.

Ball screws are available for application-specific designs. Just let us know your application specifics and our team of expert engineers will help you to choose or custom-develop the right linear actuator for your project.



Applications of Electric Rotary Linear Actuator:



  • Atomiser
  • Wood working machinery
  • Armored vehicles
  • Flow cleaning machines
  • Salt spaying machines
  • Snow blowing equipment
  • Construction machinery
  • Lifting machine
  • Tractor
  • Caravans
  • Van tents
  • X-ray equipment
  • Dentist chairs
  • Equipment for disabled/aged people
  • PV tracking system
  • CSP tower

The involvement in the most different industrial fields shows the ability of our linear motion devices (linear actuator, electric cylinder) to be suitable and reliable for a lot of applications.



Do not hesitate to contact us sharing your project with our team, we will find together the best solution for your requirement.
