|Power Supply:||12V/24V/36V/48V DC||Stroke Range:||2''-40''|
|Stroke Tolerance:||±3mm||Installation Tolerance:||±5mm|
|Warranty:||12 Months||Operational Temperature Range:||-30° F To +149° F|
|Screw Type:||Trapezoidal Screw|
waterproof linear actuator,
outdoor linear actuator
High force Linear Actuators With Hall sensor(s), 12volt brushed dc motor, outdoor linear actuator waterproof for Caravan
Basic info about High force linear actuators
|Model||High force linear actuators|
|Max. Static load||12000N|
|Max. Dynamic load||12000N|
|Operation Speed||6.5 mm/sec/12000N|
|Input Signal||3.3VDC, 5VDC|
|Position Detection||Hall sensor(s)/ Potentiometer|
|Motor||Brushed DC motor|
|Degree of Protection||IP65|
|Screw Type||Trapezoidal screw|
|Optional 1||Cable length|
|Optional 2||Feedback (POT /hall sensor)|
|Optional 3||Installation size|
|IP Rating Reference Chart (LINEAR ACTUATOR)
Below is an easy to follow reference chart to know IP rating you use now
|IP Number||First Digit - SOLIDS||Second Digit - LIQUIDS|
|IP43||Protected from tools and small wires greater than 1 millimeter.||Protected from water spray less than 60 degrees from vertical.|
|IP54||Protected from limited dust ingress.||Protected from water spray from any direction.|
|IP65||Protected from total dust ingress.||Protected from low pressure water jets from any direction.|
|IP66||Protected from total dust ingress.||Protected from high pressure water jets from any direction.|
Features of Linear Actuator
|Type||Electric linear actuator|
|Motor type||Brush DC motor|
|Cable||Bare wire 0.4m|
|Voltage||12 or 24VDC|
|Limit switches||Integrated non adjustable|
|Operating and storage temperature||-40℃~+65℃|
|Manufacturing quality standards||ISO9001:2015|
LINEAR ACTUATOR STROKE DATA
|High Force Linear Actuator||Stroke ±3(mm)||Mounting dimensions±5(mm)||With/Without Feedback|
Load & Speed of High force linear actuators
|Product mode||Max load(N)||Speed (mm/s)|
|High force linear actuators||12000||6.5|

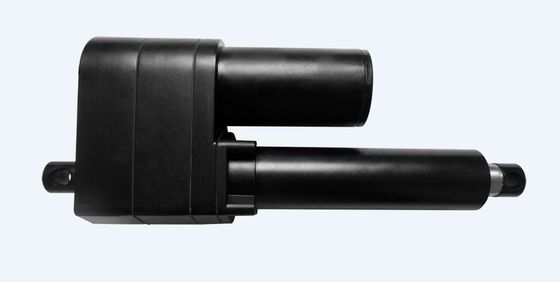

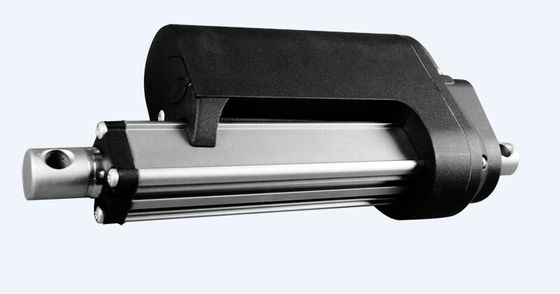

Pictures of High force linear actuators
Our company have different series linear actuators:
We will help you choose the best actuator for your application.
From your first prototype right through to full-scale production of your product, we will be there to support you.
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
Lead time of High force Linear Actuators:
|Est. Time(days)||7||15-18||22||To be negotiated|
Some examples of applications where LINEAR ACTUATOR / ELECTRIC CYLINDER are in use:
What If I need Develop a New Linear Actuator/Electric Cylinder
We accept ODM, however, we have MOQ requirement, it depends on the item you required.
Warranty of Linear Actuators
We warrant all linear actuators, to be free from defects in materials and workmanship for a period of 12 months from date of shipment.
We shall, at our option, repair or replace any linear actuators deemed by us to be defective under this warranty.
In no event shall we be liable for any damages, or warrant any of our liner actuators which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.
