1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System

I'm Online Chat Now

1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System

1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System
1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System

Large Image :  1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: Electric Rotary Linear Actuator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: carton box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System

Description
Intermittent Duty: 25% Limit Switches: Built-in
Max Force: 1200n Aluminum Push Rod: Yes
Option: Wired,wireless Controller
High Light:

miniature rotary actuator

,

rod style actuator

Electric Actuators 12VDC With Controller System, 1inch-24inch stroke, Max load 1200N, IP65 (Waterproof)

Specification of Electric Rotary Linear Actuator:



Item nameLinear Actuator
Max. stroke600MM
Max. Static load2000N
Max. Dynamic load1200N
Operation Speed

5mm/s/1200n
7mm/s/1000n

Input Signal3.3VDC, 5VDC
Position DetectionPotentiometer
MotorBrushed DC motor
Degree of ProtectionIP65
Screw TypeTrapezoidal screw
Power Input48V/36V/24V/12V
Self-locking abilityYES
Operating temperature-35℃~65℃
Optional 1Installation size


Installation length of Electric Rotary Linear Actuator:


Linear Actuator Stroke ±2(mm)Mounting dimensions±3(mm)Without Feedback
Stroke50100150200250300350400450
Size155205255305355420470520570
Linear Actuator Stroke ±2(mm)Mounting dimensions±3(mm)With Potentiometer
Stroke50100150200250300350400450
Size185235285335385450500550600


Newton (N) to Pound (lbs)

Newton1200N1000N800N500N200N100N
LBS2642201761104422


1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 0

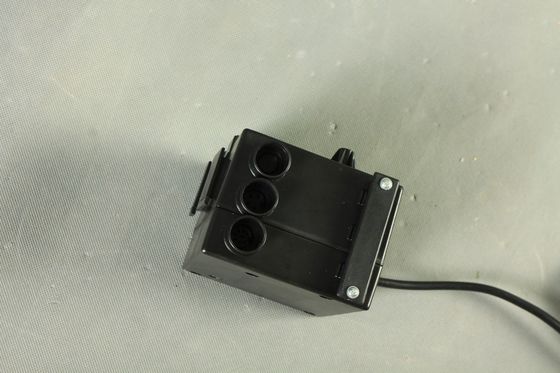

Wired controller systems for Electric Rotary Linear Actuator

Wireless controller systems for Electric Rotary Linear Actuator

 1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 1


All our linear actuators are fully customizable. Choose from our wide range of linear actuators.
Ball screws are available for application-specific designs. Just let us know your application specifics and our team of expert engineers will help you to choose or custom-develop the right linear actuator for your project.


There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:

  • Stroke length (travel length)
  • Installation length
  • Mounting requirements
  • Feedback(Hall sensor/Magnetic reed switch)
  • Motor voltage
  • Dynamic load
  • Static load
  • Speed
  • Precision
  • Others

The life span of different linear actuators:

ModelFurniture linear actuatorTrack linear actuatorHigh force linear actuatorMini linear actuatorHeavy-duty linear actuator
Duty cycle10%10%10%25%25%
Service life
(cycles)
2000020000300002000010000

1200N 1 inch -24 inch Electric Linear Rod Actuator With Controller System 2

Q&A



  • Can you produce linear actuator as per the samples?

         Our engineers will evaluate whether we can do it or not,
         If yes, we will build the molds and fixtures of linear actuator for your confirmation.
         If not, we will inform you the result, we may recommend the supplier who can meet your requirements on linear actuator.


  •  May I know the warranty of your linear actuators?

            For mini size linear actuators, warranty: 12 months
            For big size linear actuators, warranty: 15 months

  •  We are interested in being your distributor in our local. Could you please let me know how can we deal with your linear actuators, and your requirements on us?

          We are looking forward to being your partner in linear motion field, please contact with our sales team, they will inform you more details.

  • Do you accept OEM linear actuator?

        Yes, we do.
        If needed, we also can help you design the label of linear actuators


  • Do you ship overseas?

        Yes we do. We will need your full physical address and exactly what you want to purchase for an accurate quote.


  • Are duties and taxes included in shipping quote price to our country?

         Sorry, we have no way of knowing that.


  • Can I use my own shipping service?

         Yes, you can.

Meeting the needs of our clients by offering a diversified of products, innovating daily and selectively upgrading to increase the range of services and activities offered.
Continuously improving quality, safety and reliability standards in the products (linear actuators, electric cylinders) and services offered in order to make our customers satisfied and trust us!

If you want to find a professor in the linear actuator field, that is what we do.
