Product Details:
|
| Voltage: | 12V/24V/36V/48V | Max Load: | 7000N |
|---|---|---|---|
| Max Speed: | 35mm/s | Duty Cycle: | 25% |
| Limit Switch: | Built-in | IP Grade: | IP65 (waterproof) |
| Feedback: | Hall Sensor Or Pot | Motor Type: | Brush DC Motor |
| OEM: | Acceptable | ODM: | Acceptable |
| Cable: | Straight Bare Cable | Power Supply: | Available |
| Item Name: | Electric Actuator, Electric Cylinder, Linear Actuator | ||
| High Light: | electric cylinder actuator,high speed heavy duty linear actuator |
||
6 Inch Stroke Heavy Duty Linear Actuator With Feedback 1100lbs Push Pull Load
Hi Dear,
No matter your team consists of 2 or 100 people, you can always try something new to expand your
market in the world or let your machine work more efficient.
No matter what knowledge you know about linear actuator, once you make decision to know about it,
please contact with us, we can inform you know-how about actuators and help you choose the right item.
We accept sample order, you can test them performance.
We will refund if the linear actuator quality is poor.
We looking for trustworthy linear motion system distributors in the world,
If you are interested in it, please reach out to us. ^_^
Sino Linear Motion Provider
Lisa Hao (Meng Hao)
+86 18762658863
Specification of Heavy Duty Linear Actuator
Item: Linear actuator
Housing material: Steel
Motor Type: Permanent magnet brushed DC motor
Input voltage: 12V/24V/36V/48V
Drive system type: Gear
Nut material: POM /Brass
Rated load: 7000N
Max stroke: 600mm
Feedback signal: Optional (potentiometer)
Finish: Power Coated
Duty cycle: 25%
Limit switches: Built-in

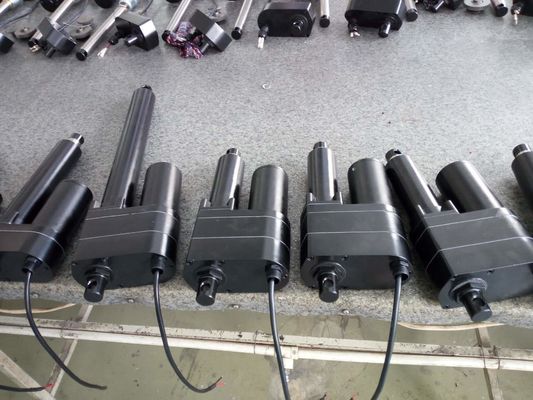

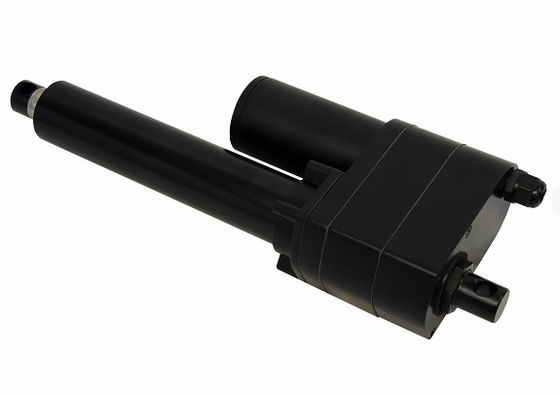

Pictures of Heavy duty linear actuator
Load & Speed of Heavy duty linear actuator
| Heavy duty linear actuator | Load±10％(N) | Speed±2(mm/S) | |||
| Load | 7,000 | 5,000 | 4,000 | 3,000 | 2,000 |
| Speed | 5.5 | 11 | 17 | 22 | 35 |
| Options of Heavy duty linear actuator |
| ● Potentiometer |
| ● Cable length |
| ● Stroke |
| ● Ball screw |
| ● Joint bearing |
| ● Bracket |
| ● Plug connection |
LINEAR ACTUATOR STROKE DATA (linear actuator with limit switches)
For stroke length below 16’’ (400mm)
A = Stroke Length +10’’(250mm)
B = Stroke Length X 2 +10’’(250mm)
For stroke length between 16’’-24’’ (400-600mm)
A = Stroke Length +12’’(300mm)
B = Stroke Length X 2 +12’’(300mm)
LINEAR ACTUATOR STROKE DATA (linear actuator without limit switches)
For stroke length below 16’’ (400mm)
A = Stroke Length +8’’(200mm)
B = Stroke Length X 2 +8’’(200mm)
For stroke length between 16’’-24’’ (400-600mm)
A = Stroke Length +10’’(250mm)
B = Stroke Length X 2 +10’’(250mm)
Newton (N) to Pound (lbs)
| Newton | 6000N | 4000N | 3000N | 2000N | 1500N | 800N |
| LBS | 1350 | 881 | 661 | 440 | 330 | 176 |
More details about heavy duty linear actuator
| Heavy duty linear actuator | Stroke ±3(mm) | Mounting dimensions±3(mm) | With limit switches/ potentiometer | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 700 | 750 |
| Heavy duty linear actuator | Stroke ±3(mm) | Mounting dimensions±3(mm) | Without limit switches | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 650 | 700 |
Applications of Linear actcuator
How can you find the right linear actuator?
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
WARRANTY OF LINEAR ACTUATOR
We guarantee that all products (LINEAR ACTUATOR) you receive will be brand new, and have been thoroughly tested for defect and performance before being shipped to you. At our company we put our products to the test, stressing their performance in heat, cold, liquid, and under heavy loads and high duty cycles. The specifications listed on our products aren't just approximations; they're backed up by hours and days of testing. We're so confident in our actuators quality, performance, and endurance, that we proudly offer the industry leading 18 month warranty.
All linear actuators produced and sold by our company are covered by our comprehensive 18 month warranty against defect or flaw. If we sell you a product, and it stops working before 18 month pass, we will replace it free of charge. However, the product has to only have been used within its rated parameters and environment conditions.
Delivery Of Linear Actuator
The lead time of sample order is about 12 day upon the receipt of payment.
Each unit is made to order and brand new.
We will select proper shipping agent according to the package size and delivery destination.
