|Power Source:||12-24 VDC||Motor Type:||DC Motor|
|Limit Switches:||WITHOUT||IP Rating:||25%|
|Optional:||Stroke||Item Name:||Electric Hydraulic Actuator|
|Movement:||Kinds Of Motion|
electric hydraulic lift cylinder,
industrial hydraulic cylinders

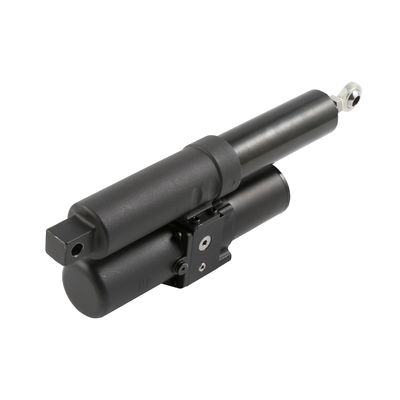

electric hydraulic actuator max load 8KN waterproof, 12v/24vdc
The electric hydraulic linear actuator featuring an integrated motor, pump, valve, and cylinder. The electric hydraulic linear actuator is an entirely self-contained unit with no external piping, thus eliminating the possibility of oil leakage. The oil tank is sealed and that allows for no restrictions on the mounting position. The electric hydraulic linear actuator is lightweight and compact and is suitable for both indoor and outdoor applications.
Features of Electric Hydraulic Actuator:
- Overload relief valve protects system.
- Circuit breaker protects motor.
- Integrated check valve assures load-holding.
- Simple installation requires only power source and switch.
- The motion is safe and reliable.
- Manual release valve is designed for emergency.
- The structure is completely sealed to prevent leakage and dust.
- Small size and light weight makes flexible mounting in any position.
Specification of Electric Hydraulic Linear Actuator:
More Linear Actuators For You Choose:
|Mini linear actuator||Sweeper car|
|Max load 1200N||Dog treadmill|
|Max speed:100mm/s||LED Car|
|Duty cycle:25%||Arrow board trail|
|IP grade:IP65||braking system|
|High force linear actuator|
|Max load 12000N||AGV|
|Max speed:38mm/s||Sweeper car|
|Duty cycle:20%||Lawn mover|
|Limit switch:Inner||Harvesting machine|
|IP grade:IP66||Robotic vehicles|
|Noise level:70db-75db||Solar tracker|
|Solar tracker linear actuator|
|Max load 12000N|
|Micro linear actuator|
|Max load 2000N||Sweeper car,|
|Max speed:15mm/s||Lawn mover,|
|Limit switch:Inner||Dog treadmill,|
Applications of Electric Hydraulic Actuator:
Quality Without Question
We attention to quality is embedded into our culture. It’s just the way we work. First, we make sure all employees have the training and tools to take individual responsibility for quality and to produce superior results. We make sure we are professional in linear actuator field.
Then, we use QA/QC processes to offer a truly comprehensive approach — all focused on identifying and eliminating potential issues of linear actuator products before they become a costly reality..
Q: What kinds of payment terms are accepted?
A: TT (telegraphic transfer) , Western Union, Private bank account
Q: When the goods can be shipped out after order is placed?
A: Depends on the complex of linear actuator and order quantity, standard sample linear actuator stroke and specifications, range of production is 7 work days, bulk order linear actuator it requires longer time.
Q: Can you produce linear actuator as per the samples?
A: Our engineers will evaluate whether we can do it or not,
If yes, we will build the molds and fixtures of linear actuator for your confirmation.
If not, we will inform you the result, we may recommend the supplier who can meet your requirements on linear actuator.
Q: May I know the warranty of your linear actuators?
A: For mini size linear actuators, warranty: 12 months
For big size linear actuators, warranty: 15 months
Q: We are interested in being your distributor in our local.
Could you please let me know how can we deal with your linear actuators, and your requirements on us?
A: We are looking forward to being your partner in linear motion field, please contact with our sales team, they will inform you more details.
