|Item Name:||High Force Linear Actuator||Screw Type:||ACME, Ball Screw|
|Operational Temperature:||-40°C/65°C||Limit Switches:||Inner, Or Signal Output|
|IP Rating:||IP66||Warranty:||1 Year|
|HS Code:||85013100||Material Of Nut:||Brass|
|Voltage:||12V, 24V, 36V, 48V||Duty Cycle:||25%|

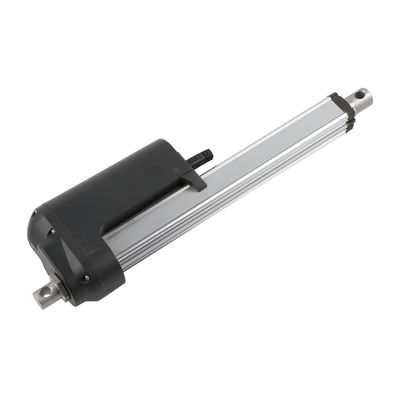

Electric actuator linear with 40 inches stroke 12v dc motor, IP66
Because of the COVID-19, many governments encourage the Intelligent Plant, which requires higher precision machines.
Now more and more smart machine manufacturers consider using ball screw linear actuator because it has higher precision and faster speeds.
We can customize different strokes of ball screw actuators, also can do brushless dc motor actuators.
Kindly inform us of your requirements, then we will match the suitable linear actuator for you.
There are different brands and different models of linear actuators in the market.
Choose the right one with the goods price, the most important part is to meet your requirement.
Key Features of high force linear actuator:
The benefits of using the ball screw linear actuator
|- Improves speed, force|
|- Longer and predictable life cycle|
|- Requires less motor power|
|- Greater accuracy|
|- High efficiency (low friction)|
Specification of high force linear actuator
|Model||High force linear actuators|
|Max. Static load||12000N|
|Max. Dynamic load||12000N|
|Operation Speed||6.5 mm/sec/12000N|
|Input Signal||3.3VDC, 5VDC|
|Position Detection||Hall sensor(s)/ Potentiometer|
|Motor||Brushed DC motor|
|Degree of Protection||IP66|
|Screw Type||Trapezoidal screw|
|Optional 1||Cable length|
|Optional 2||Feedback (POT /hall sensor)|
|Optional 3||Installation size|
L.min means the length when linear actuator 100% fully retracts, meanwhile,
it will touch the tail limited switch, stop automatically, very safe.
Stroke means the movement length of linear actuator.
L.max means the length when linear actuator 100% fully extends, meanwhile,
it will touch the head limited switch, stop automatically, very safe.
Installation size of linear actuator
For example: linear actuator, 250mm stroke, 450mm mounting length
Our test lab
Load & Speed of linear actuator
|Product mode||Max load(N)||Speed (mm/s)|
Advantages of linear actuator
See below pictures of real applications of linear actuator
How can you find the right linear actuator?
When determining a design for your linear actuator, there are countless factors to take into consideration.
One of the first things you'll need to determine is the viability of standard linear actuator designs for your project.
If standard can't be made to work efficiently, it's time to start looking at custom options.
· Input voltage
· Load speed
· Load capacity in lbs/N
· IP rate
Our main goal is to satisfy and exceed the expectations of our clients.
We have the capabilities to meet low and high product volume requirements.
