Product Details:
|
Feedback: | Potentiometer On Demand | Temperature Range: | -35°C +65°C |
---|---|---|---|
Intermittent Duty: | 25% | Limit Switches: | Built-in |
REAR END: | Optional | FRONT END: | Optional |
Max Force: | 1200n | Aluminum Push Rod: | Yes |
High Light: | electric linear actuator,rod style actuator |

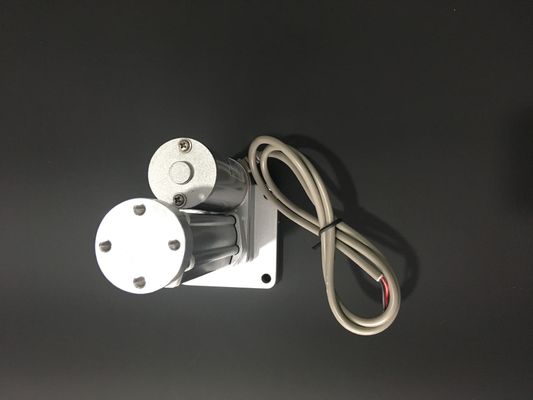

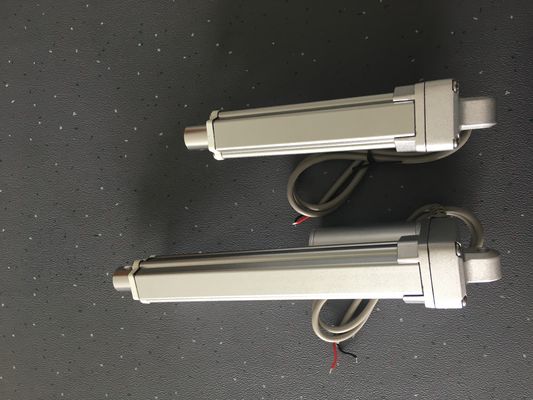

Water Resistant Electric Linear Actuator 24V DC Motor 50-600mm Stroke
Linear actuators supply force to assist operators lifting heavy loads or titling angles or lids. The working life of linear actuators depends on size, orientation, duty cycles, and other operational conditions.
We are here to help you with any question on linear actuators / electric cylinders.
We can quickly help you find the right information or solution to your needs.
Specification of Electric Rotary Linear Actuator:
Item name | Mini Linear Actuator |
Max. stroke | 600MM |
Max. Static load | 2000N |
Max. Dynamic load | 1200N |
Operation Speed | 5mm/s/1200n |
Input Signal | 3.3VDC, 5VDC |
Position Detection | Potentiometer |
Motor | Brushed DC motor |
Degree of Protection | IP65 |
Screw Type | Trapezoidal screw |
Power Input | 48V/36V/24V/12V |
Self-locking ability | YES |
Operating temperature | -35℃~65℃ |
Optional 1 | Installation size |
Installation length of Electric Rotary Linear Actuator:
Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | Without Feedback | ||||||
Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
Size | 155 | 205 | 255 | 305 | 355 | 420 | 470 | 520 | 570 |
Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | With Potentiometer | ||||||
Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
Size | 185 | 235 | 285 | 335 | 385 | 450 | 500 | 550 | 600 |
Weight of Electric Rotary Linear Actuator
Stroke | Retracted Length | Extended Length | Weight |
2'' | 6.2'' | 8.2'' | 1kg |
4'' | 8.2'' | 12.2'' | 1kg |
6'' | 10.2'' | 16.2'' | 1kg |
8'' | 12.2'' | 20.2'' | 1.5kg |
10'' | 14.2'' | 24.2'' | 1.5kg |
12'' | 16.8'' | 28.8'' | 2kg |
14'' | 18.8'' | 32.8'' | 2kg |
16'' | 20.8'' | 36.8'' | 2kg |
18'' | 22.8'' | 40.8'' | 2.5kg |
20'' | 25.2'' | 45.2'' | 2.5kg |
Outline Drawing of Electric Rotary Linear Actuator With Feedback
Potentiometers in the market are rated in term of ohms of resistance across its entire range, and the number of turns (revolutions) of the shaft from the zero point to full range. Our most common units are 10k (ohms) 10 turns.
If you require precise positioning, you may use a potentiometer with more turns to achieve the full resistance range
Outline Drawing of Electric Rotary Linear Actuator Without Feedback
Features of Electric Rotary Linear Actuator::
- Simple installation requires only power source and switch.
- The motion is safe and reliable.
- The structure is completely sealed to prevent leakage and dust.
- Small size and light weight makes flexible mounting in any position.
All our linear actuators are fully customizable. Choose from our wide range of linear actuators.
Ball screws are available for application-specific designs. Just let us know your application specifics and our team of expert engineers will help you to choose or custom-develop the right linear actuator for your project.
Applications of Electric Rotary Linear Actuator:
for example:
It is popular to see Service trucks or trailers are equipped with sign board that can be lifted by LINEAR ACTUATOR KIT.
And it is controlled by remote control
Yes, we do.
If needed, we also can help you design the label of linear actuators
Yes we do. We will need your full physical address and exactly what you want to purchase for an accurate quote.
Sorry, we have no way of knowing that.
Yes, you can.
Meeting the needs of our clients by offering a diversified of products, innovating daily and selectively upgrading to increase the range of services and activities offered.
Continuously improving quality, safety and reliability standards in the products (linear actuators, electric cylinders) and services offered in order to make our customers satisfied and trust us!
If you want to find a professor in linear actuator field, that is what we do.
