Product Details:
|
| Rated Voltage: | 12-24-36-48 Vdc | Capacity: | 1200n |
|---|---|---|---|
| Stroke: | From 30 To 600 Mm | Installation Length: | Different Stroke, Different Length |
| Clevis Ends: | 6.5mm Diameter | Feature: | Water-resistant, Dust-resistant, Pollution-resistant |
| Highlight: | small electric piston actuator,miniature electric actuator |
||
Gear Motor Electric Mini Linear Actuator 1000N 220 Lbs Force 5mm/S
Specification of Mini Linear Actuator:
Item: Linear actuator
Housing material: Aluminum
Motor Type: Permanent magnet brushed DC motor
Input voltage: 12V/24V/36V/48V
Drive system type: Gear
Nut material: POM /Brass
Rated load: 1200N
Max stroke: 600mm
Feedback signal: Optional (potentiometer)
Finish: Power Coated
Duty cycle: 25%
Limit switches: Built-in
IP rating: IP65
Gear Motor Electric Mini Linear Actuator 1000N 220 Lbs Force 5mm/S
| IP Rating Reference Chart Below is an easy to follow reference chart to know IP rating you use now |
||
| IP Number | First Digit - SOLIDS | Second Digit - LIQUIDS |
| IP43 | Protected from tools and small wires greater than 1 millimeter. | Protected from water spray less than 60 degrees from vertical. |
| IP54 | Protected from limited dust ingress. | Protected from water spray from any direction. |
| IP65 | Protected from total dust ingress. | Protected from low pressure water jets from any direction. |
| IP66 | Protected from total dust ingress. | Protected from high pressure water jets from any direction. |
Below you can see the correlation between STROKE and LOAD of Mini LINEAR ACTUATOR.
|
Stroke Range (mm) |
Max Load (Newton) |
| 501-600 | 100 |
| 401-500 | 200 |
| 301-400 | 400 |
| 201-300 | 1000 |
| 30-200 | 1200 |
Load & Speed of Linear Actuator:
| Linear Actuator | Load±10％(N) | Speed±2(mm/S) | |||||||
| Load | 1,200 | 1,000 | 800 | 700 | 600 | 500 | 400 | 200 | 100 |
| Speed | 5 | 7 | 8 | 11 | 10 | 16 | 17 | 40 | 60 |

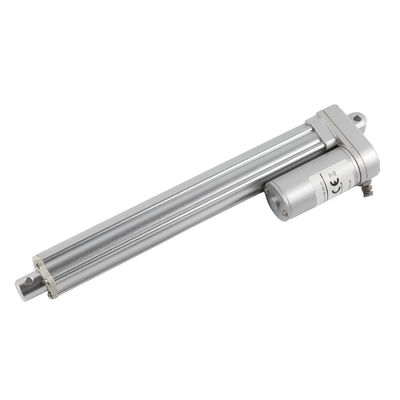

Picture of Gear Motor Electric Mini Linear Actuator
Installation size of linear actuator —Without potentiometer
30≤Stroke＜300, L=S+105mm
300≤Stroke＜500, L=S+120mm
500≤Stroke＜600, L=S+130mm
Installation size of linear actuator —With potentiometer
30≤Stroke＜300, L=S+135mm
300≤Stroke＜500, L=S+150mm
500≤Stroke＜600, L=S+160mm
Gear Motor Electric Mini Linear Actuator 1000N 220 Lbs Force 5mm/S
Some examples of applications where LINEAR ACTUATOR / ELECTRIC CYLINDER are in use:
We are a professor company on linear actuators; we have different linear actuators with different specifications:
