Outdoor Acme Screw Linear Actuator 100mm Travel Length Trapezoidal Screw

Description
Power Source: 12volt/24volt/36volt/48volt Screw: Acme Screw
Operational Temperature: -40°C/65°C (-104°F/150°) Limit Switch: Built-in (factory Preset)
Optional: Ball Screw Motor: Brushed DC Motor
Self-locking Ability: Yes Optional: Stepper Motor
Warranty: 1 Year Stroke: Customized
High Light:

acme screw linear actuator

,

electric ball screw actuator

Ball screw linear actuator 24volt dc 100mm travel length 800n force, outdoor use/waterproof

Specification of linear actuator

Item name

 Linear Actuator

Max. stroke

600MM

Max. Static load

2000N

Max. Dynamic load

2000N

Operation Speed

10mm/s/1200n
5mm/s/2000n

Input Signal

3.3VDC, 5VDC

Position Detection

Potentiometer / Hall sensor (s)

Motor

Brushed DC motor

Degree of Protection

IP65

Screw Type

Trapezoidal screw

Power Input

48V/36V/24V/12V

Self-locking ability

YES

Operating temperature

-35℃~65℃

Optional 1

Installation size


General Features
Voltage of motor 12, 24 DC,
Maximum load 2,000N in push
Maximum load 2,000N in pull
Maximum speed at full load 11mm/s (with 1000N in a push or pull condition)
Stroke 30~600mm
Minimum installation dimension Stroke + 115mm (with Hall sensor(s) or without output signals)
Color Grey
Certificate
IP rating Up to IP66
Operational temperature range -40˚C~+65˚C
Operational temperature range +5˚C~+45˚C at full performance
Options POT, Optical, Hall sensor(s)










We mentioned about IP rating, do you know what the mean of IP number:



IP Rating Reference Chart
Below is an easy to follow reference chart to know IP rating you use now
IP NumberFirst Digit - SOLIDSSecond Digit - LIQUIDS
IP43Protected from tools and small wires greater than 1 millimeter.Protected from water spray less than 60 degrees from vertical.
IP54Protected from limited dust ingress.Protected from water spray from any direction.
IP65Protected from total dust ingress.Protected from low pressure water jets from any direction.
IP66Protected from total dust ingress.Protected from high pressure water jets from any direction.

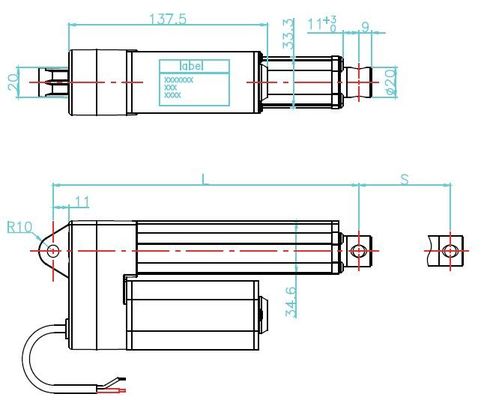

Stroke & Mounting dimensions of linear actuator


 Linear ActuatorStroke ±2(mm)Mounting dimensions±3(mm)Without Feedback
Stroke50100150200250300350400450
Size165215265315365445495545595
 Linear ActuatorStroke ±2(mm)Mounting dimensions±3(mm)With Hall sensors
Stroke50100150200250300350400450
Size165215265315365445495545595


Load & Speed & Current of Linear Actuator


CodeDynamic Load (N)Speed±10% (mm/s)Amp (in normal temperature)
24V
Free loadFull loadFree loadFull load
A200054< 0.6< 2
B160075.5< 0.6< 2
C1200108< 0.6< 2
D800108< 0.6< 2
E4001611< 0.6< 2
F10002822< 0.6< 2
G2005545< 0.6< 2


Newton (N) to Pound (lbs)


Newton2500200016001200N1000N800N500N200N100N
LBS5504403502642201761104422



Below you can see the correlation between STROKE and LOAD of MICRO LINEAR ACTUATOR.


Stroke Range
(mm)

Max Load (Newton)
501-600400
401-500800
301-4001200
201-3001600
30-2002000



Picture of COMPACT LINEAR ACTUATOR

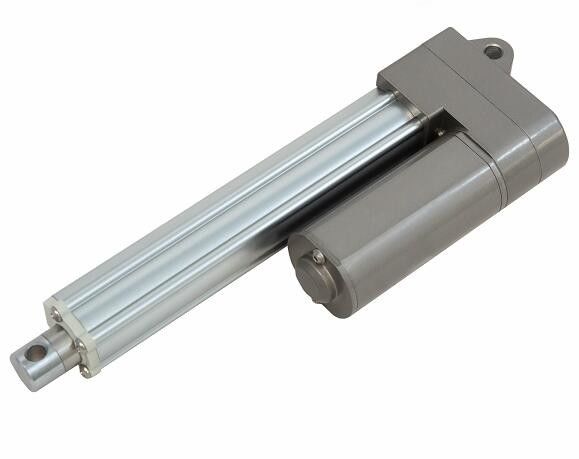

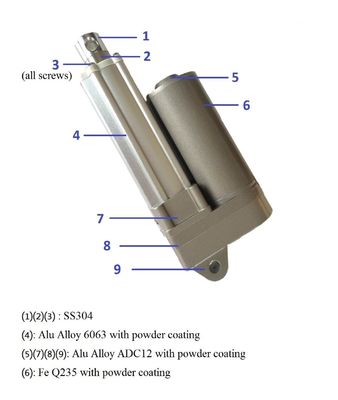

Outdoor Acme Screw Linear Actuator 100mm Travel Length Trapezoidal Screw 0

Outdoor linear actuator

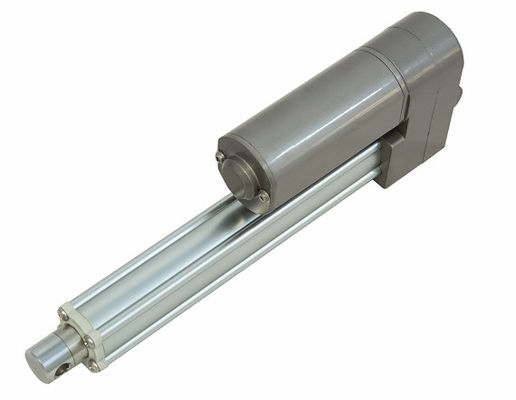

Outdoor Acme Screw Linear Actuator 100mm Travel Length Trapezoidal Screw 1
