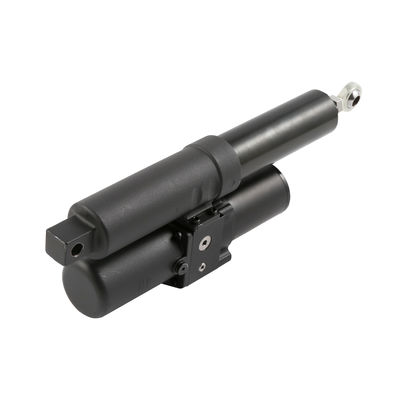

Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder

Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder
Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder

Large Image :  Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: Electric Hydraulic Linear Actuator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: carton box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder

Description
Power Source: 12-24 VDC Drive System Type: Gear
Duty Cycle: 25% Motor Type: Permanent Magnet Brushed DC Motor
Limit Switches: WITHOUT IP Rating: 25%
OEM: Yes
High Light:

small hydraulic cylinder

,

industrial hydraulic cylinders

Electric hydraulic linear actuator is available with a range of options for motor, pump, bore and stroke length, making the new system an ideal choice for machine builders looking for a simple and efficient method of providing fast, high power linear motion.



Features of Electric Hydraulic Actuator:





- Overload relief valve protects system.

- Circuit breaker protects motor.

- Integrated check valve assures load-holding.

- Simple installation requires only power source and switch.

- The motion is safe and reliable.

- Manual release valve is designed for emergency.

- The structure is completely sealed to prevent leakage and dust.

- Small size and light weight makes flexible mounting in any position.







Specification of Electric Hydraulic Linear Actuator:

  • Capacity 1800lbs
  • Gap in between mounting eyes approx. 15 – 25 inches/ 380 – 630 mm
  • Stroke approx. 10 inches / 250 mm
  • Cylinder rod diameter .78 inches / 20 mm
  • Mounting eye diameter 5/8″
  • Power supply 12 VDC
  • Rated voltage: DC 12 V
  • Max Current: 40 A
  • Duty Cycle: 25% max under full rated load.

Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder 0



Applications of Electric Hydraulic Actuator:



  • ATV / UTV
    • Bed Tilt
    • Snow Plow Lift / Angle
    • 3 Point Hitch
  • Lawn and Garden / Tractor
    • Mower Deck Lift
    • Agricultural / Turf Sprayers
  • Material Handling Equipment
    • Lift / Tilt Tables
    • Drum Lifts

Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder 1



Quality Without Question

We attention to quality is embedded into our culture. It’s just the way we work. First, we make sure all employees have the training and tools to take individual responsibility for quality and to produce superior results. We make sure we are professional in linear actuator field.

Then, we use QA/QC processes to offer a truly comprehensive approach — all focused on identifying and eliminating potential issues of linear actuator products before they become a costly reality..



  • Efficient management of resources
  • Constant growth and profitability targets
  • New business opportunities



If you want to find a professor in linear actuator field, that is what we do.





Agricultural Electric Hydraulic Actuator Outdoor Electric Hydraulic Lift Cylinder 2
