Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: High force linear actuators
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: 2pcs linear actuator per carton; wooden box for bulk order
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

OEM Electric Actuator, DC Motor Industrial Linear Actuator For Road Sprinkler, Option Potentiometer/Hall Sensor

Description
Item Name: High Force Linear Actuators Max. Stroke: 1000MM
Max. Dynamic Load: 12000N Degree Of Protection: IP66
Screw Type: Trapezoidal Screw Power Input: 48V/36V/24V/12V
Self-locking Ability: YES Operating Temperature: -35℃~65℃
Limit Switches: Built-in OEM: Acceptable

Dear All,
Good day,
Thanks for browsing this page.❤
It's our pleasure to have you here.
Lisa Hao comes from China, one of the linear actuator manufacturers in Wuxi city.
We're not only selling the linear actuator but also do something for society.
If you buy 1 pc linear actuator, We will donate 1 RMB to the Wuxi Animal Protection Volunteer Association as your name.
If you have friends in Wuxi who want to adopt a dog/cat, kindly contact me, we will do an interview and send a form to fill in.
Welcome to visit the base and do something for the homeless animals!
Contact me: +86 18762658863



We're dedicated to not just meeting the electric linear actuators' function needs, but also quality-of-life needs.



Features

* Stroke up to 1000mm

* Supply 12v, 24v

* Rating 25% at full load

* Protection IP66 / IP69K

* Max load 12000N (1200kg)



Model Selection
High Force Linear Actuator Load±10%(N) Speed±2(mm/S)
Load 12,000 10,000 7,000 3,000
Speed 6.5 13 17 35
High Force Linear Actuator Stroke ±3(mm) Mounting dimensions±5(mm) With/Without Feedback
Stroke 50 100 150 200 250 300 350 400 450
Size 300 300 350 400 450 550 600 650 700

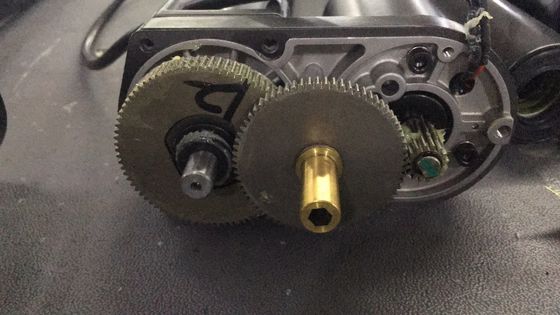

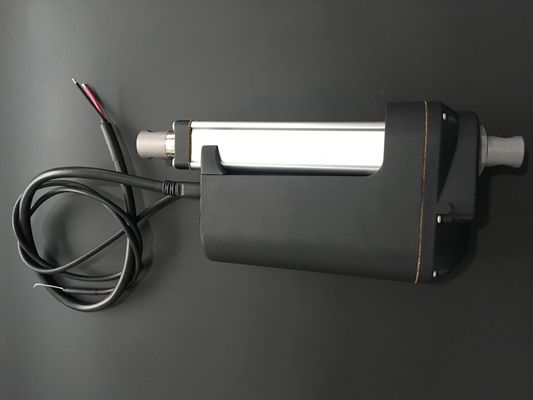

Picture of HIGH FORCE LINEAR ACTUATOR

OEM Electric Actuator, DC Motor Industrial Linear Actuator For Road Sprinkler, Option Potentiometer/Hall Sensor 0

OEM Electric Actuator, DC Motor Industrial Linear Actuator For Road Sprinkler, Option Potentiometer/Hall Sensor 1





HIGH FORCE LINEAR ACTUATOR FEATURES



Type Electric linear actuator
Motor type Brush DC motor
Cable Bare wire 0.4m
Voltage 12 or 24VDC
Screw type ACME
Noise level ≤75dB
Limit switches Integrated non-adjustable
Stroke tolerance ±3mm
Duty cycle 20%
Production class IP66
Feedback Hall sensor/pot
Operating and storage temperature -40℃~+65℃
Manufacturing quality standards ISO9001:2015
CE Label Yes

`



What's the meaning of linear actuator IP rating/Production class?



IP Rating Reference Chart

Below is an easy to follow reference chart to know IP rating you use now
IP Number First Digit - SOLIDS Second Digit - LIQUIDS
IP43 Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.
IP54 Protected from limited dust ingress. Protected from water spray from any direction.
IP65 Protected from total dust ingress. Protected from low pressure water jets from any direction.
IP66 Protected from total dust ingress. Protected from high pressure water jets from any direction.



We have different linear actuators for you to choose from:



  • Furniture Linear Actuator
  • Track Linear Actuator
  • Mini Linear Actuator
  • Heavy Duty Linear Actuator
  • Solar Tracker Linear Actuator
  • High Force Linear Actuator



We Are Here To Help

If you need any help with the setup of your machinery with linear actuators, our team will be happy to give you support.

Please don't hesitate to call, email or access the website anytime need.
