Home ProductsHeavy Duty Linear Actuator

Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force

I'm Online Chat Now

Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force

Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force
Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force

Large Image :  Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: Heavy-duty linear actuators
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: 2pcs linear actuator per carton; wooden box for bulk order
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force

Description
Item Name: Heavy Duty Linear Actuators Stroke: Customized
Max. Dynamic Load: 12000N Degree Of Protection: IP66
Screw Type: Trapezoidal Screw (ball Screw Optional) Power Input: 24V/12V
Self-locking Ability: YES Limit Switches: Built-in
OEM: Acceptable HS Code: 85013100

Dear All,
Good day,
Thanks for browsing this page.❤
It's our pleasure to have you here.
Lisa Hao comes from China, one of the linear actuator manufacturers in Wuxi city.
We're not only selling the linear actuator but also do something for society.
If you buy 1 pc linear actuator, We will donate 1 RMB to the Wuxi Animal Protection Volunteer Association as your name.
If you have friends in Wuxi who want to adopt a dog/cat, kindly contact me, we will do an interview and send a form to fill in.
Welcome to visit the base and do something for the homeless animals!
Contact me: +86 18762658863



We're dedicated to not just meeting the electric linear actuators' function needs, but also quality-of-life needs.



Length:
From the center of mounting to the center of mounting point for the product. Typically extended or compressed length specified.



Stroke:

The amount of travel available in the product.



Diameter:

The device may have one or more diameters specified depending on the configuration.



Linear actuators supply force to assist operators in lifting heavy loads or tilting angles or lids. The working life of linear actuators depends on size, orientation, duty cycles, and other operational conditions.



We are here to help you with any questions on linear actuators / electric cylinders.

We can quickly help you find the right information or solution to your needs.





Model Selection
High Force Linear Actuator Load±10%(N) Speed±2(mm/S)
Load 12,000 10,000 7,000 3,000
Speed 6.5 13 17 35
High Force Linear Actuator Stroke ±3(mm) Mounting dimensions±5(mm) With/Without Feedback
Stroke 50 100 150 200 250 300 350 400 450
Size 300 300 350 400 450 550 600 650 700

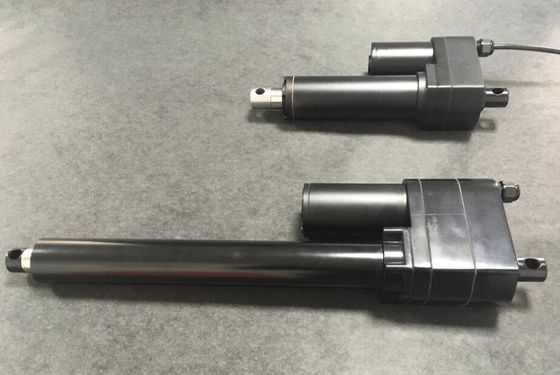

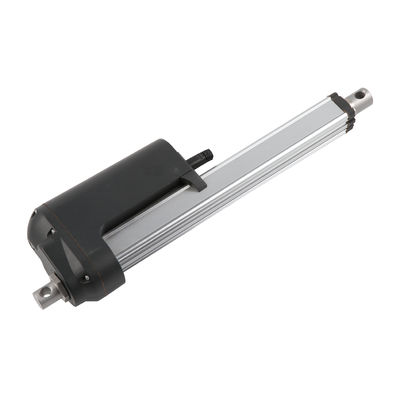

Picture of HIGH FORCE LINEAR ACTUATOR

Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force 0Industrial Linear Actuator 24VDC, 12v/24v/36v/48vdc, 2''4''6''8''10'' Travel Length 1000lbs force 1



HIGH FORCE LINEAR ACTUATOR FEATURES



Type Electric linear actuator
Motor type Brush DC motor
Cable Bare wire 0.4m
Voltage 12 or 24VDC
Screw type ACME
Noise level ≤75dB
Limit switches Integrated non-adjustable
Stroke tolerance ±3mm
Duty cycle 20%
Production class IP66
Feedback Hall sensor/pot
Operating and storage temperature -40℃~+65℃
Manufacturing quality standards ISO9001:2015
CE Label Yes

`

We have different linear actuators for you to choose from:



  • Furniture Linear Actuator
  • Track Linear Actuator
  • Mini Linear Actuator
  • Heavy Duty Linear Actuator
  • Solar Tracker Linear Actuator
  • High Force Linear Actuator



Quality Without Question

Our attention to quality is embedded into our culture. It’s just the way we work. First, we make sure all employees have the training and tools to take individual responsibility for quality and to produce superior results. We make sure we are professional in the linear actuator field.

Then, we use QA/QC processes to offer a truly comprehensive approach — all focused on identifying and eliminating potential issues of linear actuator products before they become a costly reality...



  • Efficient management of resources
  • Constant growth and profitability targets
  • New business opportunities

Applications of Linear Actuator:

  • Atomizer
  • Woodworking machinery
  • Armored vehicles
  • Flow cleaning machines
  • Salt spraying machines
  • Snow blowing equipment
  • Construction machinery
  • Lifting machine
  • Tractor
  • Caravans
  • Van tents
  • X-ray equipment
  • Dentist chairs
  • Equipment for disabled/aged people
  • PV tracking system
  • CSP tower
