Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches

I'm Online Chat Now

Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches

Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches
Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches

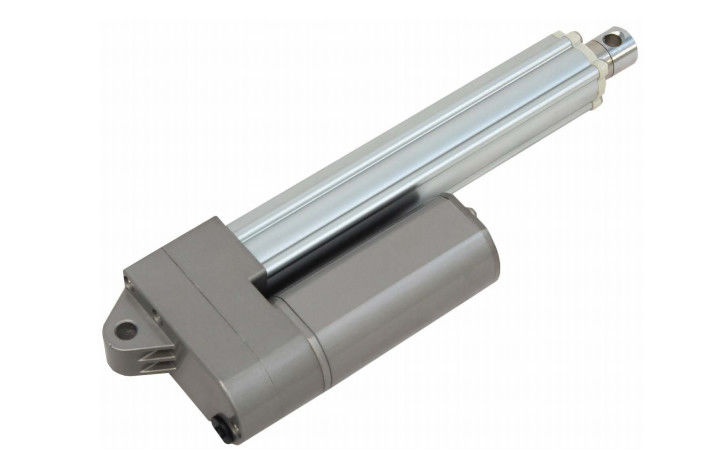

Large Image :  Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: Mini Linear Actuator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: carton box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches

Description
Rated Voltage: 12-24 Vdc Stroke: From 30 To 600 Mm
Installation Length: Different Stroke, Different Length Item Name: Linear Actuator
Movement: Kinds Of Motion OEM: Acceptable
Duty Cycle: 25% Feature: Waterproof, Compact Size
MOQ: 10pcs Linear Actuator Front/rear Attachment: φ8.2
High Light:

small electric piston actuator

,

miniature electric actuator

Brush DC Power-driven Miniature Electric Actuators With non-adjustable limit switches, 12Volt / 24Volt, customize stroke, CE mark



Specification of Mini Linear Actuator:



Item name Mini Linear Actuator
Max. stroke 600MM
Max. Static load 2000N
Max. Dynamic load 2000N
Operation Speed

12mm/s/1200n

5mm/s/2000n

Input Signal 3.3VDC, 5VDC
Position Detection Potentiometer
Motor Brushed DC motor
Degree of Protection IP65
Screw Type Trapezoidal screw
Power Input 48V/36V/24V/12V
Self-locking ability YES
Operating temperature -35℃~65℃
Optional 1 Installation size







IP Rating Reference Chart

Below is an easy to follow reference chart to know IP rating you use now
IP Number First Digit - SOLIDS Second Digit - LIQUIDS
IP43 Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.
IP54 Protected from limited dust ingress. Protected from water spray from any direction.
IP65 Protected from total dust ingress. Protected from low-pressure water jets from any direction.
IP66 Protected from total dust ingress. Protected from high-pressure water jets from any direction.





Brush DC Power-driven Miniature Electric Actuators With non-adjustable limit switches, 12Volt / 24Volt, customize stroke, CE mark





Below you can see the correlation between STROKE and LOAD of Mini LINEAR ACTUATOR.



Stroke Range

(mm)

Max Load (Newton)
501-600 400
401-500 800
301-400 1200
201-300 1600
30-200 2000



Load & Speed of Linear Actuator:



Linear Actuator Load±10%(N) Speed±2(mm/S)
Load 20,00 1,200 800 700 600
Speed 5 12 10 18 14



PICTURES OF MICRO LINEAR ACTUATOR



Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches 0

Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches 1




Some examples of applications where LINEAR ACTUATOR / ELECTRIC CYLINDER are in use:

  • Locking mechanisms for vehicle-mounted wheelchair lifts
  • Moving device for Patient lifter
  • Driving the movement in robotic hands
  • Used for testing touch screens on mobile devices
  • Titling the boom/brush of Vehicles
  • Car window opener
  • Open/Close the valve
  • hoist-style lift for scooters and powerchairs

Brush DC Power Driven Miniature Electric Actuator With Non Adjustable Limit Switches 2



We are a professor company on linear actuators; we have different linear actuators with different specifications:

  • Mute linear actuators
  • Heavy-duty linear actuator
  • Light duty linear actuator
  • High force linear actuators
  • Mini Linear Actuator
