|Item Name:||Electric Linear Actuator, Linear Actuator||Stroke:||Customized|
|Max. Load:||12000n||Max. Speed:||38mm/s|
|Duty Cycle:||25%||Magnetic Reed Switch:||Options|
Thanks for browsing our web.❤
If you buy 1 pc linear actuator, We will donate 1 RMB to the Wuxi Animal Protection Volunteer Association as your name.
If you have friends in Wuxi who want to adopt a dog/cat, kindly contact me,
We will do an interview and send a form to fill in.
Welcome to visit the base and do something for the homeless animals!
Contact me: +86 18762658863
Now we will start to introduce our products!

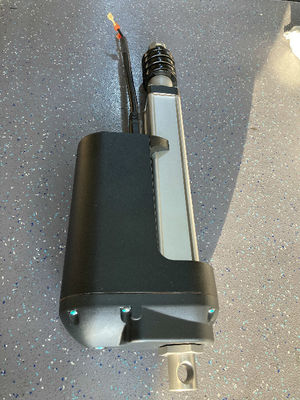

Basic info of electric linear actuator:
Input voltage: 12V/24V/36V/48V
Drive system type: Gear
Nut material: Brass
Gearbox: powder metal
Rated load: 12000N
Max stroke: 1000mm
Feedback signal: Optional (HALL SENSOR/POT)
Duty cycle: 25%
Limit switches: Built-in
Forces to 12000N, speed 5 to 38 mm/s, motors 12V DC or 24V DC, duty 25%. Integral limit switches. standard actuator strokes are from 50 to 1000mm. These actuators suit many types of machinery, like agricultural machines, lawn mover, sweeper, armored vehicles, tractor, material handling machine,
Standard actuator strokes are from 100 to 1500mm. In push applications, the stroke may be limited by buckling limits. Special designs with non-standard strokes, fittings, motors, etc are possible for volume applications. Actuators are available optimized for solar tracking of photovoltaic panels.
Correct sizing of linear actuators involves speeds, forces, and considerations of mounting, control, duties, and operating environment. We recommend that you contact us directly.
The final critical component of an electric actuator is the two single-pole, double-throw (SPDT) end of travel limit switches. One is for the closed position, and the other is for the open position. These switches provide an adequate number of electrical contacts in the immediate, closed, and open positions.
※ Features of industrial linear actuator
* Stroke up to 1000mm
* Supply 12v, 24v
* Rating 25% at full load
* Protection IP66 / IP69K
* Max load 12000N (1200kg)
Payment: T/T, Western Union, Cash
Delivery time: up to 10 days for sample, mass order based on quantity.
Shipping terms: FOB Shanghai, FCA Shanghai, EXW, CIF XX
