Product Details:
|
| Limit Switches: | Built-in | Max Force: | 1200n |
|---|---|---|---|
| Aluminum Push Rod: | Yes | Option: | Wired,wireless Controller |
| Certificate: | CE Declaration | Optional: | Potentiometer On Demand |
| Temperature Range: | -35°C +65°C | Construction: | Permanent Magnet |
Very small in size, robust, waterproof and easy to install. Each linear actuator comes with 2 wires (positive and negative), no external limit switches and mounting holes on each end.
Specification of 200mm Stroke Mini Linear Actuator / Waterproof Linear Actuator 12v Dc:
| Item name | Linear Actuator |
| Max. stroke | 600MM |
| Max. Static load | 2000N |
| Max. Dynamic load | 1200N |
| Operation Speed |
5mm/s/1200n |
| Input Signal | 3.3VDC, 5VDC |
| Position Detection | Potentiometer |
| Motor | Brushed DC motor |
| Degree of Protection | IP65 |
| Screw Type | Trapezoidal screw |
| Power Input | 48V/36V/24V/12V |
| Self-locking ability | YES |
| Operating temperature | -35℃~65℃ |
| Optional 1 | Installation size |
150mm Stroke Mini Linear Actuator / Waterproof Linear Actuator 12v Dc
Installation length of Mini Linear Actuator:
| Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | Without Feedback | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 155 | 205 | 255 | 305 | 355 | 420 | 470 | 520 | 570 |
| Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | With Potentiometer | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 185 | 235 | 285 | 335 | 385 | 450 | 500 | 550 | 600 |
Newton (N) to Pound (lbs)
| Newton | 1200N | 1000N | 800N | 500N | 200N | 100N |
| LBS | 264 | 220 | 176 | 110 | 44 | 22 |
Installation size of linear actuator —Without potentiometer
30≤Stroke＜300, L=S+105mm
300≤Stroke＜500, L=S+120mm
500≤Stroke＜600, L=S+130mm
Installation size of linear actuator —With potentiometer
30≤Stroke＜300, L=S+135mm
300≤Stroke＜500, L=S+150mm
500≤Stroke＜600, L=S+160mm
Load & Speed of 200mm Stroke Mini Linear Actuator / Waterproof Linear Actuator 12v Dc:
| Linear Actuator | Load±10％(N) | Speed±2(mm/S) | |||||||
| Load | 1,200 | 1,000 | 800 | 700 | 600 | 500 | 400 | 200 | 100 |
| Speed | 5 | 7 | 8 | 11 | 10 | 16 | 17 | 40 | 60 |

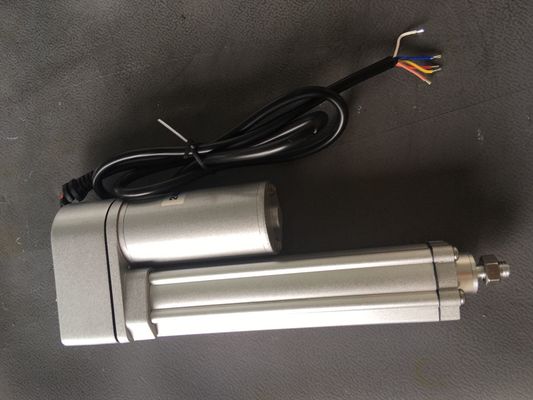

Picture of Waterproof Linear Actuator
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
Life span of different linear actuators:
| Model | Furniture linear actuator | Track linear actuator | High force linear actuator | Mini linear actuator | Heavy duty linear actuator |
| Duty cycle | 10% | 10% | 10% | 25% | 25% |
| Service life (cycles) |
20000 | 20000 | 30000 | 20000 | 10000 |
Picture of linear actuators
Our engineers will evaluate whether we can do it or not,
If yes, we will build the molds and fixtures of linear actuator for your confirmation.
If not, we will inform you the result, we may recommend the supplier who can meet your requirements on linear actuator.
For mini size linear actuators, warranty: 12 months
For big size linear actuators, warranty: 15 months
We are looking forward to being your partner in linear motion field, please contact with our sales team, they will inform you more details.
Yes, we do.
If needed, we also can help you design the label of linear actuators
