|Item Name:||Fast Linear Actuator||Max. Stroke:||600MM|
|Degree Of Protection:||IP65||Screw Type:||Trapezoidal Screw|
|Self-locking Ability:||YES||Duty Cycle:||25%|
|Feature:||High Speed||Installation Size:||Optional|
fast electric linear actuator,
high speed electric actuator

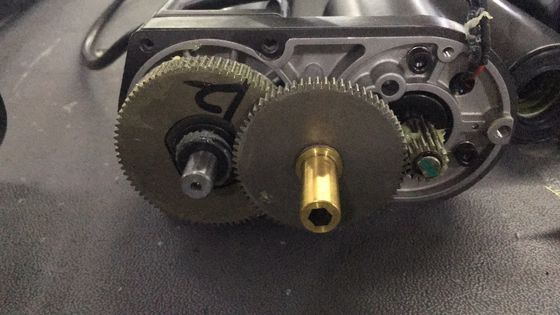

Dc 300mm Stroke 4000N Push Pull Fast Linear Actuator Waterproof Compact
We are the industry leader in the manufacture of ball crew, linear actuator, electric cylinder for the manufacturing industry.
We also have parts of the device work in the furniture/medical field.
Below is the list of our main linear actuators:
Industrial linear actuator
Furniture linear actuator
Medical linear actuator
Electric hydraulic actuator
Solar linear actuator
Specification of Fast Linear Actuator
|Full-load current (A)
-12v linear actuator
|Full-load current (A)
-24v linear actuator
|fast linear actuator||2000||35||28.5||17||8|
Linear actuator with limit switch/potentiometer
|Stroke length (mm)||50||100||150||200||250||300||400|
|Extended length (mm)||350||450||550||650||750||850||1100|
Linear actuator without limit switch
Advantages of linear actuator
- Simple structure
- Low cost
- Position feedback.
- Operating process can be automated
- High-speed operation
- High durability
If you're looking for electric components, a key rating to look for is the IP rating,
you will find specifications indicating IP65, IP66, etc
These show that the linear actuator is suitable for many conditions you will encounter outdoors.
For example, IP65 indicates dust-tight and protected against non-pressurized water jets.
|IP Rating Reference Chart
Below is an easy to follow reference chart to know IP rating you use now
|IP Number||First Digit - SOLIDS||Second Digit - LIQUIDS|
|IP43||Protected from tools and small wires greater than 1 millimeter.||Protected from water spray less than 60 degrees from vertical.|
|IP54||Protected from limited dust ingress.||Protected from water spray from any direction.|
|IP65||Protected from total dust ingress.||Protected from low-pressure water jets from any direction.|
|IP66||Protected from total dust ingress.||Protected from high-pressure water jets from any direction.
Application of linear actuator
Quality Without Question
Our attention to quality is embedded in our culture. It’s just the way we work. First, we make sure all employees have the training and tools to take individual responsibility for quality and to produce superior results. We make sure we are professional in the linear actuator field.
Then, we use QA/QC processes to offer a truly comprehensive approach — all focused on identifying and eliminating potential issues of linear actuator products before they become a costly reality...
If you want to find a professor in the linear actuator field, that is what we do.
