Home ProductsFast Linear Actuator

Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper

I'm Online Chat Now

Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper

Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper
Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper

Large Image :  Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: Mid-size linear actuator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: 2pcs linear actuator per carton; wooden box for bulk order
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper

Description
Item Name: Micro Linear Actuator Max. Stroke: 600MM
Max. Dynamic Load: 20000N Motor: Brushed DC Motor
Degree Of Protection: IP65 Screw Type: Trapezoidal Screw
Power Input: 48V/36V/24V/12V Self-locking Ability: YES
Operating Temperature: -35℃~65℃ Duty Cycle: 25%
Limit Switches: Built-in OEM: Acceptable
High Light:

fast acting linear actuator

,

fast electric linear actuator



Brush DC Motor Linear Actuators 12volt/ 24volt, mini size and reliable actuators, linear rod operation for road sweeper



Specification of Mid-size Linear Actuator



Item name Micro Linear Actuator
Max. stroke 600MM
Max. Static load 2000N
Max. Dynamic load 2000N
Operation Speed

10mm/s/1200n

5mm/s/2000n

Input Signal 3.3VDC, 5VDC
Position Detection Potentiometer / Hall sensor (s)
Motor Brushed DC motor
Degree of Protection IP65
Screw Type Trapezoidal screw
Power Input 48V/36V/24V/12V
Self-locking ability YES
Operating temperature -35℃~65℃
Optional 1 Installation size



MID-SIZE LINEAR ACTUATOR FEATURES



Type Electric linear actuator
Motor type Brush DC motor
Cable Bare wire 0.4m
Voltage 12 or 24VDC
Screw type ACME
Noise level ≤60dB
Limit switches Integrated non adjustable
Stroke tolerance ±3mm
Duty cycle 25%
Production class IP65
Feedback Hall sensor/pot
Operating and storage temperature -35℃~+65℃
Manufacturing quality standards ISO9001:2015
CE Label Yes

`

What's the meaning of linear actuator IP rating/Production class?

IP Rating Reference Chart

Below is an easy to follow reference chart to know IP rating you use now
IP Number First Digit - SOLIDS Second Digit - LIQUIDS
IP43 Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.
IP54 Protected from limited dust ingress. Protected from water spray from any direction.
IP65 Protected from total dust ingress. Protected from low pressure water jets from any direction.
IP66 Protected from total dust ingress. Protected from high pressure water jets from any direction.




Life span of different linear actuators:

Model Furniture linear actuator Track linear actuator High force linear actuator Mini linear actuator Heavy duty linear actuator
Duty cycle 10% 10% 10% 25% 25%
Service life
(cycles)
20000 20000 30000 20000 10000





Hi Dear,



Lisa Hao comes from China, one of the linear motion system suppliers.

Thanks for browsing our website, we hope you can find the right item.

Different linear motion (linear actuator, electric cylinder…) has different specifications, kindly inform us your requirements.

We are looking for partners in the world, if you are interested in it, please contact with us to know more info.

Enjoy and reach out to us in case of any questions!



Sino Linear Motion Provider

Lisa Hao (Meng Hao)

+86 18762658863

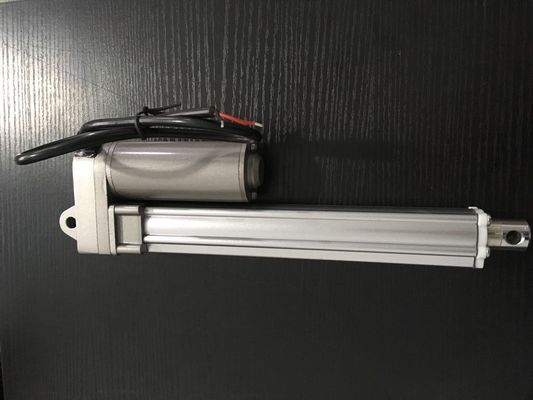

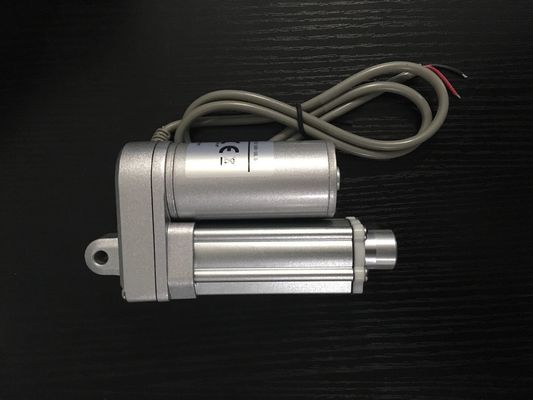

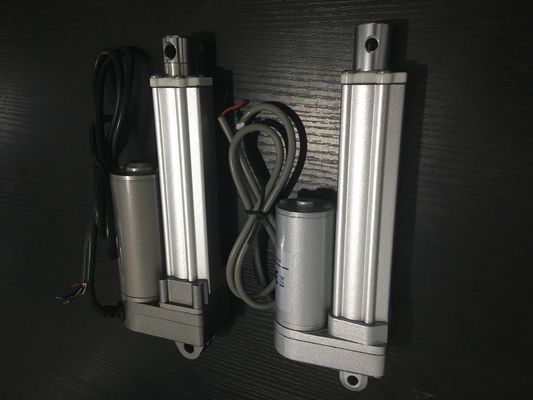

Picture of MID-SIZE LINEAR ACTUATOR

Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper 0

Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper 1





We have different linear actuators for you choose:



**Furniture Linear Actuator



**Mini Linear Actuator



**Heavy Duty Linear Actuator



**Solar Tracker Linear Actuator



**High Force Linear Actuator



Brush DC Motor Fast Linear Actuator 12v / Mini Electric Actuator For Road Sweeper 2



Online service/After-sales service



We do not have customer service agents working 24/7,

Please leave messages or send emails to us if the question is not urgent,

we will reply within 24 hours.



+86 18762658863

lisahao1992@gmail.com

lisahao1992@163.com
