|Max Force:||7000n||IP Rating:||65|
|Certificate:||CE Declaration||Power Source:||12-24-36-48 VDC|
|Lead Screw:||ACM / Ball Screw||Feedback:||Potentiometer/ Hall Sensor(s) On Demand|
lead screw linear actuator,
ball screw linear stepper motor

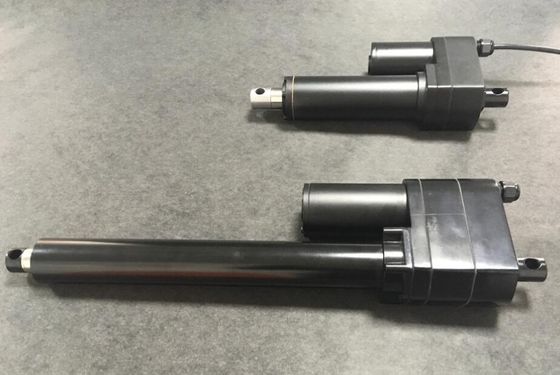

24volt industrial linear actuator with gearbox 300mm stroke 6000n force, waterproof
What is Linear actuator and how it work?
Linear actuator include motor, screw, nut, gearbox, limit switches, it is generate linear motion from a rotating motor.
an electric motor is mechanically connected to rotate a lead screw. A lead screw has a continuous helical thread machined on its circumference running along the length (similar to the thread on a bolt). Threaded onto the lead screw is a lead nut or ball nut with corresponding helical threads. The nut is prevented from rotating with the lead screw (typically the nut interlocks with a non-rotating part of the actuator body).
Therefore, when the lead screw is rotated, the nut will be driven along the threads.
The direction of motion of the nut depends on the direction of rotation of the lead screw.
Feature of Linear Actuator
|Type||Electric linear actuator|
|Motor type||Brush DC motor|
|Cable||Bare wire 0.5m|
|Voltage||12 , 24VDC|
|Noise level||≤65 dB|
|Limit switches||Integrated non adjustable|
|Feedback||Hall sensor / Pot|
|Operating and storage temperature||-40℃~+65℃|
|Manufacturing quality standards||ISO9001:2015|
Product of lead screw linear actuator:
Newton (N) to Pound (lbs)
We are a professor company on linear actuators; we have different linear actuators with different specifications:
Guarantee of Linear Actuator/ Electric Cylinder
Our talented team of designers, engineers and linear actuator assemblers ensure that every linear actuator / electric cylinder that leaves our facility is perfectly suited to saving you time and money. Our linear actuators / electric cylinders can work for a variety of applications.
Applications of Linear Actuator:
Our employees have many years of experience in providing our customers with the best time to the market solutions for their device.
