Product Details:
|
| Power Source: | 12-24-36-48 VDC | Lead Screw: | ACM / Ball Screw |
|---|---|---|---|
| Feedback: | Potentiometer/ Hall Sensor(s) On Demand | Drive System Type: | Gear |
| Rated Load: | 7000N | Max Stroke: | 600mm |
| Duty Cycle: | 25% | Limit Switches: | Optional |
| High Light: | screw drive linear actuator,ball screw linear stepper motor |
||

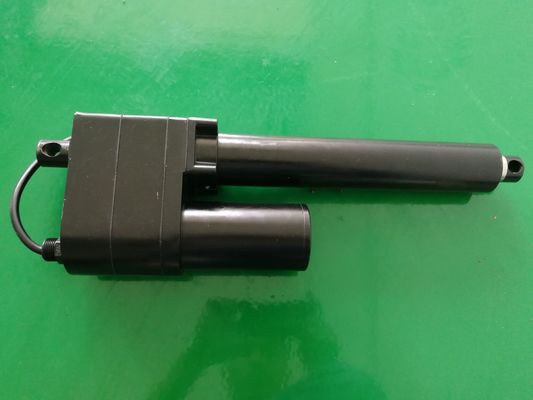

12v 200mm stroke Industrial Linear Actuator for lifting trunk lid, Waterproof appearance Actuator
What is Linear actuator and how it work?
Linear actuator include motor, screw, nut, gearbox, limit switches, it is generate linear motion from a rotating motor.
an electric motor is mechanically connected to rotate a lead screw. A lead screw has a continuous helical thread machined on its circumference running along the length (similar to the thread on a bolt). Threaded onto the lead screw is a lead nut or ball nut with corresponding helical threads. The nut is prevented from rotating with the lead screw (typically the nut interlocks with a non-rotating part of the actuator body).
Therefore, when the lead screw is rotated, the nut will be driven along the threads.
The direction of motion of the nut depends on the direction of rotation of the lead screw.
Feature of Linear Actuator
| Type | Electric linear actuator |
| Motor type | Brush DC motor |
| Cable | Bare wire 0.5m |
| Voltage | 12 , 24VDC |
| Screw type | ACME |
| Noise level | ≤65 dB |
| Limit switches | Integrated non adjustable |
| Stroke tolerance | ±3mm |
| Duty cycle | 25% |
| Production class | IP65 |
| Feedback | Hall sensor / Pot |
| Operating and storage temperature | -40℃~+65℃ |
| Manufacturing quality standards | ISO9001:2015 |
| CE Label | Yes |
Product of lead screw linear actuator:
We are a professor company on linear actuators; we have different linear actuators with different specifications:
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
Guarantee of Linear Actuator/ Electric Cylinder
Our talented team of designers, engineers and linear actuator assemblers ensure that every linear actuator / electric cylinder that leaves our facility is perfectly suited to saving you time and money. Our linear actuators / electric cylinders can work for a variety of applications.
Production Line Of Waterproof Linear Actuators
Applications of Linear Actuator:
Our employees have many years of experience in providing our customers with the best time to the market solutions for their device.
