|Power Source:||24 VDC||Force:||1200N|
|Screw Type:||Lead Screw||Stroke Tolerance:||±3mm|
|Motor Type:||Brush DC Motor||Limit Switches:||Integrated Non Adjustable|
automotive linear actuators,
industrial belt driven linear actuators
Brush DC Motor Linear Actuators Electric 24volt with Remote Controller System, 24volt input, built-in limit switches
Specification of Industrial Linear Actuator:
• High performance 12 / 24/36/48V DC motor
• Protection class: IP65
• Stroke: 50 to 600 mm
• Retracted length: S+105mm
• Load capacity: up to 1200 N
• Maximum load speed: 4 to 60 mm/s
• Option ball screw
• Stainless steel version (304 inner tube)
• CE certification
• Low temperature version from -40 ° C to + 65 ° C
• Duty cycle 25%
• Other options on request (fixing, stroke, connection, potentiometer, ...)
Load & installation length of Industrial Linear Actuator
|Linear Actuator||Stroke ±2(mm)||Mounting dimensions±3(mm)||Without Feedback|
|Linear Actuator||Stroke ±2(mm)||Mounting dimensions±3(mm)||With Potentiometer|
Weight of High Speed Linear Actuator
|Stroke||Retracted Length||Extended Length||Weight|
Newton (N) to Pound (lbs)

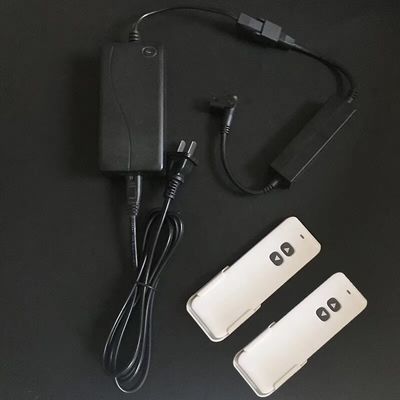

Remote controller system:
Wired controller system:

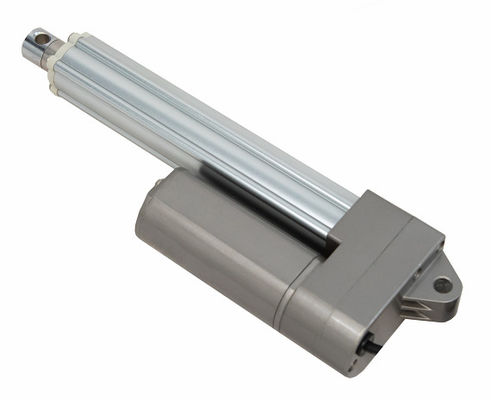

Picture of linear electric actuator
How do I select electrical actuators?
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
Q: What kinds of payment terms are accepted?
A: TT (telegraphic transfer) , Western Union, Private bank account
Q: When the goods can be shipped out after order is placed?
A: Depends on the complex of linear actuator and order quantity, standard sample linear actuator stroke and specifications,
range of production is 7 work days, bulk order linear actuator it requires longer time.
Q: Can you produce linear actuator as per the samples?
A: Our engineers will evaluate whether we can do it or not,
If yes, we will build the molds and fixtures of linear actuator for your confirmation.
If not, we will inform you the result, we may recommend the supplier who can meet your requirements on linear actuator.
Q: May I know the warranty of your linear actuators?
A: For mini size linear actuators, warranty: 12 months
For big size linear actuators, warranty: 15 months
Q: We are interested in being your distributor in our local.
Could you please let me know how can we deal with your linear actuators, and your requirements on us?
A: We are looking forward to being your partner in linear motion field, please contact with our sales team, they will inform you more details.
Our main goal is to satisfy and exceed the expectations of our clients.
We have the capabilities to meet low and high product volume requirements.
