Product Details:
|
| Motor Type: | Permanent Magnet Brushed DC Motor | Input Voltage: | 12V/24V/36V/48V |
|---|---|---|---|
| Rated Load: | 1200N | Max Stroke: | 600mm |
| Duty Cycle: | 25% | HS Code: | 85013100 |
| Mounting Holes: | φ6.5 | Duty: | 25% |
| Housing: | Aluminium Alloy | Operational Temperature Range: | -30° F To +149° F |
| Enclosure: | IP65 | ||
| High Light: | dc motor linear actuator,miniature electric actuator |
||
Electric Rotary Mini Linear Actuator 12 Volt 100mm For Mobility Scooter
Our factory is an expert in linear motion field, many products for you choose, like linear actuator, electric cylinder, ball screw...
For example: linear actuator
Furniture linear actuators
Industrial linear actuators
Solar tracker linear actuators
R&D continues at sino linear actuator as we develop smaller, powerful, stable and more cost effective linear actuators for the next generation of automation.
To best serve you and to identify the most appropriate contact for your needs, please inform us your requirements on linear actuator.
Specification of Mini Linear Actuator
| Technical specifications | Mini linear actuator |
| Rated voltage | 12V /24V /36V /48V dc |
| Force, Dynamic | Up to 1200N |
| Force, static | Up to 1400N |
| Speed | Approx. 5 to 60mm/s |
| Stroke length | Up to 600mm |
| Rated current | Depends on voltage / load |
| Duty cycle | 25% |
| Production class | IP65 |
| Operating temperatire | -30 ℃ to +65℃ |
| Airborne noise emission | ≤65dB (A) |
| Limit switches | Built-in |
| Feedback | Potentiometer |
| Applications | Industrial use |
Stroke:
The amount of travel available in the product.
Installation Length:
From center of mounting to center of mounting point for the product. Typically extended or compressed length specified.
Features of Mini Linear Actuator:
Below you can see the correlation between STROKE and LOAD of Mini LINEAR ACTUATOR.
|
Stroke Range |
Max Load (Newton) |
| 501-600 | 100 |
| 401-500 | 200 |
| 301-400 | 400 |
| 201-300 | 1000 |
| 30-200 | 1200 |
Newton (N) to Pound (lbs)
| Newton | 1200N | 1000N | 800N | 500N | 200N | 100N |
| LBS | 264 | 220 | 176 | 110 | 44 | 22 |
Linear Actuator Without Potentiometer
For stroke length below 12’’ (300mm)
A = Stroke Length +4.2’’(105mm)
B = Stroke Length X2 + 4.2’’(105mm)
For stroke length between 12’’-20’’ (300-500mm)
A = Stroke Length +4.8’’(120mm)
B = Stroke Length X 2 +4.8’’(120mm)
For stroke length between 20’’-24’’ (500-600mm)
A = Stroke Length +5.2’’(130mm)
B = Stroke Length X 2 +5.2’’(130mm)
Linear Actuator With Potentiometer
For stroke length below 12’’ (300mm)
A = Stroke Length +5.4’’(135mm)
B = Stroke Length X2 + 5.4’’(135mm)
For stroke length between 12’’-20’’ (300-500mm)
A = Stroke Length +6’’(150mm)
B = Stroke Length X 2 +6’’(150mm)
For stroke length between 20’’-24’’ (500-600mm)
A = Stroke Length +6.4’’(160mm)
B = Stroke Length X 2 +6.4’’(160mm)

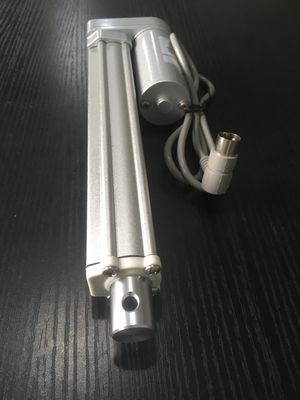

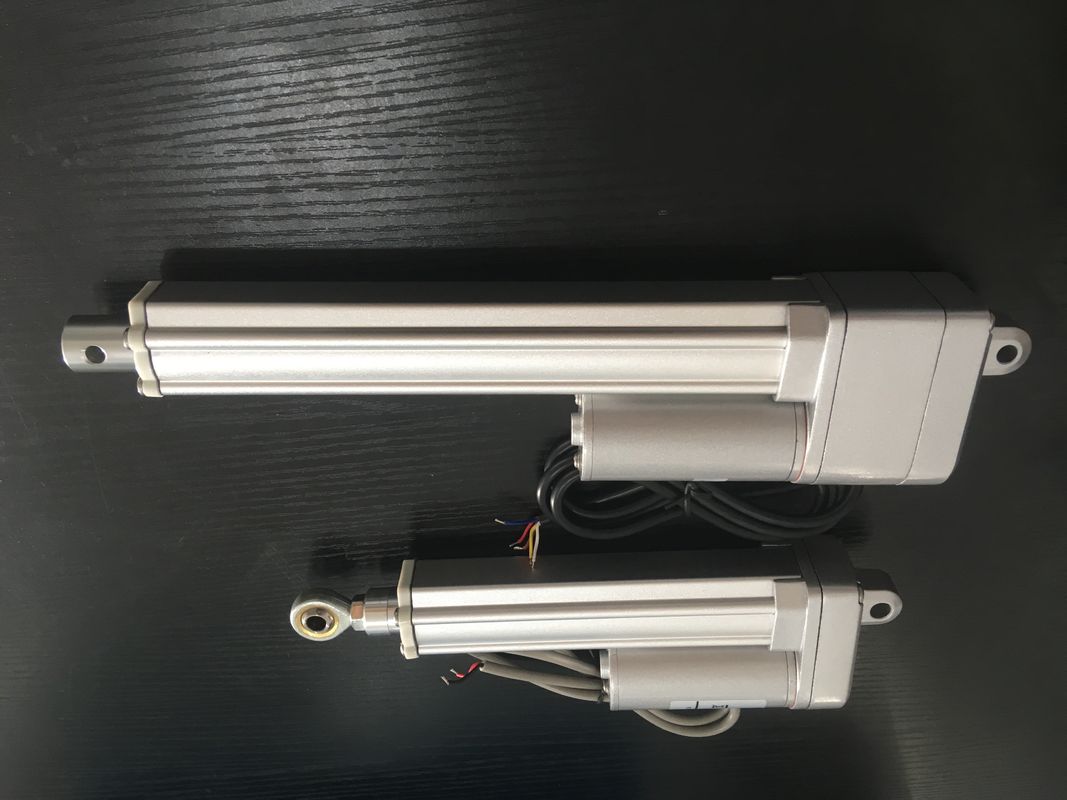

Picture of mini linear actuator
linear actuator without pot
linear actuator with pot
The more we understand your application, the more suitable our offer would be.
Please fill the table below as much as you could.
Some modification might be needed to the actuator so as to ensure its adaptability
and durability catering for various uses.
We will offer detailed drawing and quotation after your reply.
| Key Spec. | Client's requirements A | |
| stroke | mm | |
| retracted length | mm (or not critical) => from front mounting hole to rear hole | |
| voltage | v dc (12v, 24v) | |
| load capacity | n (remark: 10 newton =1 kg) | |
| Push or Pull | Using pull force or push force? Both? | |
| Constant tension | Would there be constant tension to piston rod? | |
| Constant pressure | Would there be constant pressure to piston rod? | |
| speed | mm/s | |
| working frequency | estimated cycles per day | |
| working environment | application | |
| ℃ max temperature? | ||
| ℃ min temperature? | ||
| dripping water/ spraying water/ immersion/ high humidity | ||
| any corrosive substance? | ||
| impact? bumpy? | ||
| any side force on piston rod? | ||
| synch (two or more actuators working together) ? | ||
| limit switches | limit switches (end stop) | |
| signal feedback | potentiometer/ hall sensor/ no need | |
| Other requirements | please describe | |
| Quantity | pieces | |
| Drawing No. | x | |
| Unit Price | x | |
| Lead Time | x | |
| Shipping cost | x |
