Product Details:
|
| Rated Voltage: | 24 Vdc | Item Name: | Mini Linear Actuator |
|---|---|---|---|
| Movement: | Kinds Of Motion | Temperature Range: | -35°C +65°C |
| Intermittent Duty: | 25% | Max Force: | 1200n |
| Aluminum Push Rod: | Yes | Limit Switches: | Built-in |
| High Light: | small electric piston actuator,dc motor linear actuator |
||
Electric mini linear actuator 12v 10inch (250mm) stroke, 1000N (220lbs), 5mm/s. 25% duty cycle
Specification of Mini Linear Actuator:
| Item name | Mini Linear Actuator |
| Max. stroke | 600MM |
| Max. Static load | 2000N |
| Max. Dynamic load | 1200N |
| Operation Speed |
5mm/s/1200n |
| Input Signal | 3.3VDC, 5VDC |
| Position Detection | Potentiometer |
| Motor | Brushed DC motor |
| Degree of Protection | IP65 |
| Screw Type | Trapezoidal screw |
| Power Input | 48V/36V/24V/12V |
| Self-locking ability | YES |
| Operating temperature | -35℃~65℃ |
| Optional 1 | Installation size |
10 Inch Stroke Mini Linear Actuator 12v 220lbs Small Electric Actuator
Linear Actuator Without Potentiometer
For stroke length below 12’’ (300mm)
A = Stroke Length +4.2’’(105mm)
B = Stroke Length X2 + 4.2’’(105mm)
For stroke length between 12’’-20’’ (300-500mm)
A = Stroke Length +4.8’’(120mm)
B = Stroke Length X 2 +4.8’’(120mm)
For stroke length between 20’’-24’’ (500-600mm)
A = Stroke Length +5.2’’(130mm)
B = Stroke Length X 2 +5.2’’(130mm)
10 Inch Stroke Mini Linear Actuator 12v 220lbs Small Electric Actuator
Linear Actuator With Potentiometer
For stroke length below 12’’ (300mm)
A = Stroke Length +5.4’’(135mm)
B = Stroke Length X2 + 5.4’’(135mm)
For stroke length between 12’’-20’’ (300-500mm)
A = Stroke Length +6’’(150mm)
B = Stroke Length X 2 +6’’(150mm)
For stroke length between 20’’-24’’ (500-600mm)
A = Stroke Length +6.4’’(160mm)
B = Stroke Length X 2 +6.4’’(160mm)

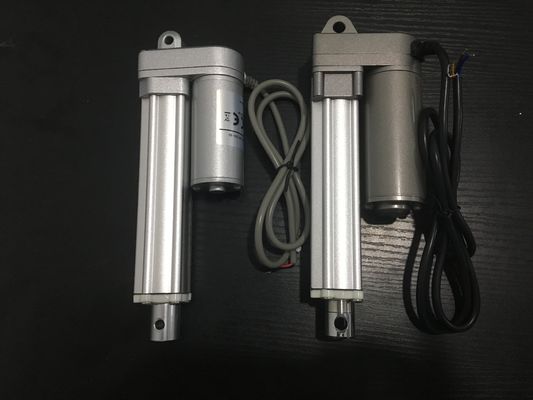

Picture of Electric Linear Actuator WATERPROOF
Lead time of Linear Actuator:
| Quantity(Piece) | 1-10 | 200 | 500 | >1000 |
| Est. Time(days) | 7 | 15-18 | 22 | To be negotiated |
Some examples of applications where LINEAR ACTUATOR / ELECTRIC CYLINDER are in use:
We are a professor company on linear actuators; we have different linear actuators with different specifications:
| Model |
| Heavy duty linear actuator |
| Voltage:12V/24V/36V/48V |
| Max load: 7000N |
| Max speed: 35mm/s |
| Duty cycle:25% |
| Limit switch:Inner |
| IP grade: IP65 |
| Retracted length: S+250mm |
| Feedback: hall sensor or pot |
| Inner tube: stainless steel |
| Model |
| High force linear actuator |
| Voltage:12V/24V/36V |
| Max load: 12000N |
| Max speed: 38mm/s |
| Duty cycle:20% |
| Limit switch:Inner |
| IP grade: IP66 |
| Retracted length: S+200mm |
| Feedback: hall sensor or pot |
| Stroke: Customized |
| Inner tube: stainless steel |
