linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke

I'm Online Chat Now

linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke

linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke
linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke

Large Image :  linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: CE
Model Number: Industrial Linear Actuators/Electric Actuator
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs linear actuator
Price: Negotiable
Packaging Details: carton box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs linear actuator per month

linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke

Description
Power Source: 12-24-36-48 VDC REAR END: φ6.5mm
FRONT END: φ6.5mm Temperature Range: -40°C +65°C
Certificate: CE Declaration Optional: Customize The Front Attachment
Item Name: Linear Actuator, Electric Pistion Duty Cycle: 25%



linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke



We are a professor company on linear actuators; we have different linear actuators with different specifications:

  • Mute linear actuators (Industrial, furniture, medical)
  • Heavy-duty linear actuator (Industrial)
  • Light duty linear actuator (Industrial)
  • High force linear actuators (Industrial)
  • Mini Linear Actuator (Industrial)



Features of linear actuator electric for ATV electric plow lift 12v dc motor, 800n force, 4inch stroke



  • Widely work for different applications
  • Easy Install
  • Low maintenance
  • High Stiffness/ High Strength
  • Steady Speed

The linear actuator is a unique device that allows for the circular movement of electric motors to be converted into an up and down motion.
Some of the most popular applications for linear actuators are in the industrial and manufacturing sectors

If you're looking for electric components, a key rating to look for is the IP rating,
you will find specifications indicating IP65, IP66, etc
These show that the linear actuator is suitable for many conditions you will encounter outdoors.
For example, IP65 indicates dust-tight and protected against non-pressurized water jets.



IP Number First Digit - SOLIDS Second Digit - LIQUIDS
IP43 Protected from tools and small wires greater than 1 millimeter. Protected from water spray less than 60 degrees from vertical.
IP54 Protected from limited dust ingress. Protected from water spray from any direction.
IP65 Protected from total dust ingress. Protected from low-pressure water jets from any direction.
IP66 Protected from total dust ingress. Protected from high-pressure water jets from any direction.



Specification of  Linear Actuator:
Item: Linear actuator
Housing material: Aluminum
Motor Type: Permanent magnet brushed DC motor
Input voltage: 12V/24V/36V/48V
Drive system type: Gear
Nut material: POM /Brass
Rated load: 1200N
Max stroke: 600mm
Feedback signal: Optional (potentiometer)
Finish: Power Coated
Duty cycle: 25%
Limit switches: Built-in



Customize different stroke of linear actuators

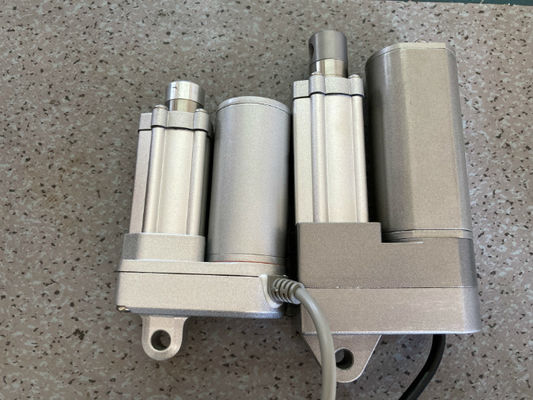

linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke 0

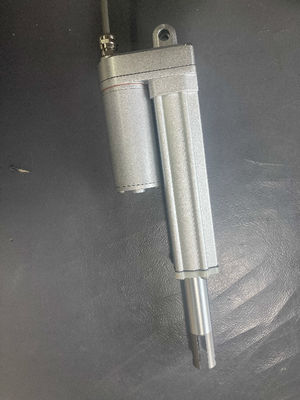

linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke 1

Load & Speed of Linear Actuator Electric


Linear Actuator Stroke ±2(mm) Mounting dimensions±3(mm) Without Feedback
Stroke 50 100 150 200 250 300 350 400 450
Size 155 205 255 305 355 420 470 520 570
Linear Actuator Stroke ±2(mm) Mounting dimensions±3(mm) With Potentiometer
Stroke 50 100 150 200 250 300 350 400 450
Size 185 235 285 335 385 450 500 550 600


Weight of High-Speed Linear Actuator


Stroke Retracted Length Extended Length Weight
2'' 6.2'' 8.2'' 1kg
4'' 8.2'' 12.2'' 1kg
6'' 10.2'' 16.2'' 1kg
8'' 12.2'' 20.2'' 1.5kg
10'' 14.2'' 24.2'' 1.5kg
12'' 16.8'' 28.8'' 2kg
14'' 18.8'' 32.8'' 2kg
16'' 20.8'' 36.8'' 2kg
18'' 22.8'' 40.8'' 2.5kg
20'' 25.2'' 45.2'' 2.5kg


Newton (N) to Pound (lbs)


Newton 1200N 1000N 800N 500N 200N 100N
LBS 264 220 176 110 44 22



Dear customer,



Good day,

Lisa Hao comes from China, one of the linear motion manufacturers in China.

Glad to know you are interested in our linear actuators.

We have many linear actuators FYI, glad to share info with you.

There are different linear actuators in our factory.

Could you please share with us your requirements for actuators?

We can quote a price or recommend a similar one to you.

You can find me by WhatsApp: +86 18762658863

Any doubts, please let us know.

Waiting for your reply. ^_^



Best regards,

Lisa Hao




How do I select electrical actuators?

There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:

  • Stroke length (travel length)
  • Installation length
  • Mounting requirements
  • Feedback
  • Motor voltage
  • Dynamic load
  • Static load
  • Speed



You have questions. We have the answer!

To best serve you and to identify the most appropriate contact for your needs, please inform us of your requirements on the linear actuator.

For Service, Parts, or Warranty questions on linear actuator we encourage customers to contact with the sales team.

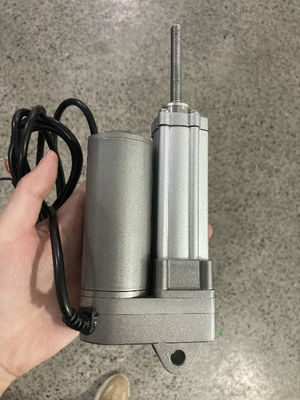

linear actuator electric for atv electric plow lift 12v dc motor, 800n force, 4inch stroke 2
