Product Details:
|
| Power Source: | 12-24-36-48 VDC | Temperature Range: | -40°C +65°C |
|---|---|---|---|
| Feedback: | Potentiometer | Certificate: | CE Declaration |
| Optional: | Potentiometer/ Hall Sensor(s) | Movement: | Kinds Of Motion |
| 2D/3D Models: | Possible | Intermittent Duty: | 25% |
| IP Rating: | IP 65 | Feature: | Water-resistant, Dust-resistant, Low Energy Consumption |
| High Light: | aerospace linear actuator,industrial belt driven linear actuators |
||
The linear actuator is a unique device that allows for the circular movement of electric motors to be converted into an up and down motion.
Some of the most popular applications for linear actuators are in the industrial and manufacturing sectors
If you're looking for electric components, a key rating to look for is the IP rating,
you will find specifications indicating IP65, IP66, etc
These show that the linear actuator is suitable for many conditions you will encounter outdoors.
For example, IP65 indicates dust-tight and protected against non-pressurized water jets.
Here is the IP info:
| IP Number | First Digit - SOLIDS | Second Digit - LIQUIDS |
| IP43 | Protected from tools and small wires greater than 1 millimeter. | Protected from water spray less than 60 degrees from vertical. |
| IP54 | Protected from limited dust ingress. | Protected from water spray from any direction. |
| IP65 | Protected from total dust ingress. | Protected from low pressure water jets from any direction. |
| IP66 | Protected from total dust ingress. | Protected from high pressure water jets from any direction. |
Specification of Mini Industrial Linear Actuator:
Item: Linear actuator
Housing material: Aluminum
Motor Type: Permanent magnet brushed DC motor
Input voltage: 12V/24V/36V/48V
Drive system type: Gear
Nut material: POM /Brass
Rated load: 1200N
Max stroke: 600mm
Feedback signal: Optional (potentiometer)
Finish: Power Coated
Duty cycle: 25%
Limit switches: Built-in
Load & Speed of High Speed Linear Actuator
| Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | Without Feedback | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 155 | 205 | 255 | 305 | 355 | 420 | 470 | 520 | 570 |
| Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | With Potentiometer | ||||||
| Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| Size | 185 | 235 | 285 | 335 | 385 | 450 | 500 | 550 | 600 |
Weight of High Speed Linear Actuator
| Stroke | Retracted Length | Extended Length | Weight |
| 2'' | 6.2'' | 8.2'' | 1kg |
| 4'' | 8.2'' | 12.2'' | 1kg |
| 6'' | 10.2'' | 16.2'' | 1kg |
| 8'' | 12.2'' | 20.2'' | 1.5kg |
| 10'' | 14.2'' | 24.2'' | 1.5kg |
| 12'' | 16.8'' | 28.8'' | 2kg |
| 14'' | 18.8'' | 32.8'' | 2kg |
| 16'' | 20.8'' | 36.8'' | 2kg |
| 18'' | 22.8'' | 40.8'' | 2.5kg |
| 20'' | 25.2'' | 45.2'' | 2.5kg |
Newton (N) to Pound (lbs)
| Newton | 1200N | 1000N | 800N | 500N | 200N | 100N |
| LBS | 264 | 220 | 176 | 110 | 44 | 22 |

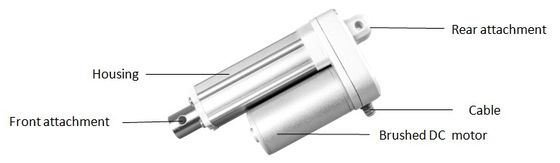

Picture of electric linear actuators
How do I select electrical actuators?
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
Q: What kinds of payment terms are accepted?
A: TT (telegraphic transfer) , Western Union, Private bank account
Q: When the goods can be shipped out after order is placed?
A: Depends on the complex of linear actuator and order quantity, standard sample linear actuator stroke and specifications,
range of production is 7 work days, bulk order linear actuator it requires longer time.
Q: Can you produce linear actuator as per the samples?
A: Our engineers will evaluate whether we can do it or not,
If yes, we will build the molds and fixtures of linear actuator for your confirmation.
If not, we will inform you the result, we may recommend the supplier who can meet your requirements on linear actuator.
Q: May I know the warranty of your linear actuators?
A: For mini size linear actuators, warranty: 12 months
For big size linear actuators, warranty: 15 months
Q: We are interested in being your distributor in our local.
Could you please let me know how can we deal with your linear actuators, and your requirements on us?
A: We are looking forward to being your partner in linear motion field, please contact with our sales team, they will inform you more details.
