Product Details:
|
Power Source: | 12-24-36-48 VDC | Temperature Range: | -40°C +65°C |
---|---|---|---|
Certificate: | CE Declaration | Intermittent Duty: | 25% |
IP Rating: | IP 65 | Feature: | Water-resistant, Dust-resistant, Low Energy Consumption |
Max Force: | 1200N | Screw Type: | Lead Screw |
High Light: | aerospace linear actuator,industrial belt driven linear actuators |
12Volt Gear motor Industrial Linear Actuators with 50-600mm travel, max load 1200N, Snow Sweeper Linear Acuator
The linear actuator is a unique device that allows for the circular movement of electric motors to be converted into an up and down motion.
Some of the most popular applications for linear actuators are in the industrial and manufacturing sectors
If you're looking for electric components, a key rating to look for is the IP rating,
you will find specifications indicating IP65, IP66, etc
These show that the linear actuator is suitable for many conditions you will encounter outdoors.
For example, IP65 indicates dust-tight and protected against non-pressurized water jets.
Specification of Industrial Linear Actuator:
• High performance 12 / 24/36/48V DC motor
• Protection class: IP65
• Stroke: 50 to 600 mm
• Retracted length: S+105mm
• Load capacity: up to 1200 N
• Maximum load speed: 4 to 60 mm/s
• Option ball screw
• Stainless steel version (304 inner tube)
• CE certification
• Low-temperature version from -40 ° C to + 65 ° C
• Duty cycle 25%
• Other options on request (fixing, stroke, connection, potentiometer, ...)
Load & installation length of Industrial Linear Actuator
Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | Without Feedback | ||||||
Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
Size | 155 | 205 | 255 | 305 | 355 | 420 | 470 | 520 | 570 |
Linear Actuator | Stroke ±2(mm) | Mounting dimensions±3(mm) | With Potentiometer | ||||||
Stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
Size | 185 | 235 | 285 | 335 | 385 | 450 | 500 | 550 | 600 |
Weight of High-Speed Linear Actuator
Stroke | Retracted Length | Extended Length | Weight |
2'' | 6.2'' | 8.2'' | 1kg |
4'' | 8.2'' | 12.2'' | 1kg |
6'' | 10.2'' | 16.2'' | 1kg |
8'' | 12.2'' | 20.2'' | 1.5kg |
10'' | 14.2'' | 24.2'' | 1.5kg |
12'' | 16.8'' | 28.8'' | 2kg |
14'' | 18.8'' | 32.8'' | 2kg |
16'' | 20.8'' | 36.8'' | 2kg |
18'' | 22.8'' | 40.8'' | 2.5kg |
20'' | 25.2'' | 45.2'' | 2.5kg |
Newton (N) to Pound (lbs)
Newton | 1200N | 1000N | 800N | 500N | 200N | 100N |
LBS | 264 | 220 | 176 | 110 | 44 | 22 |

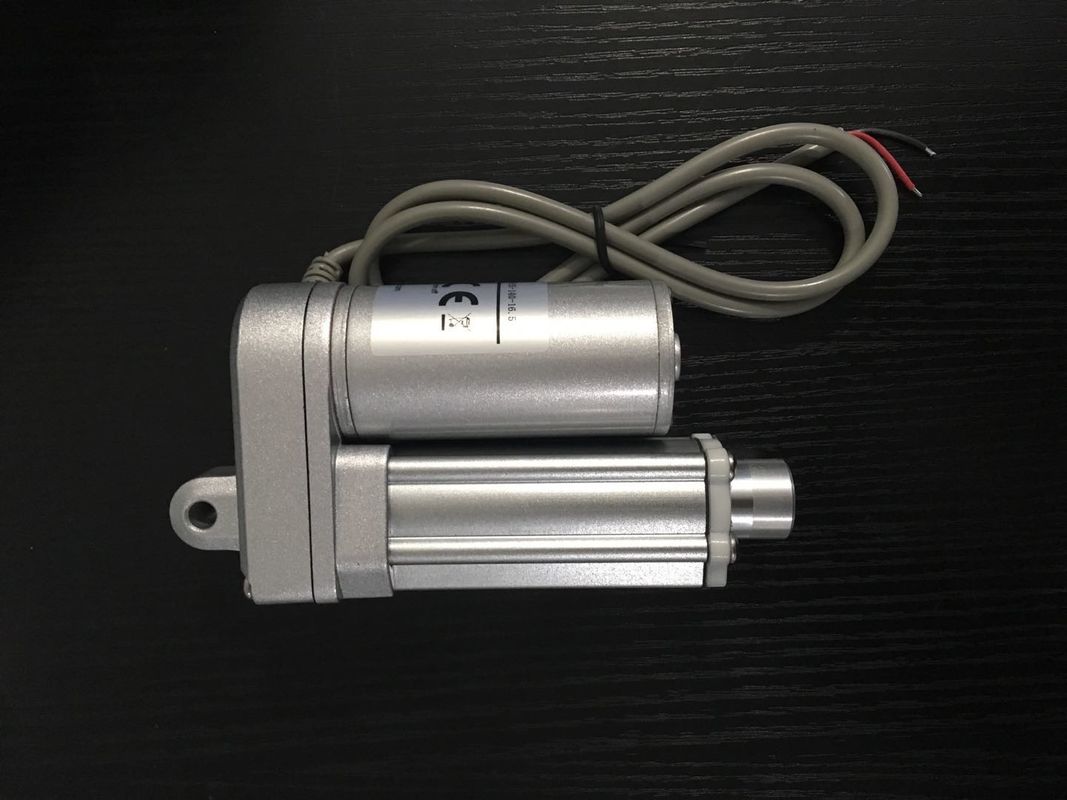

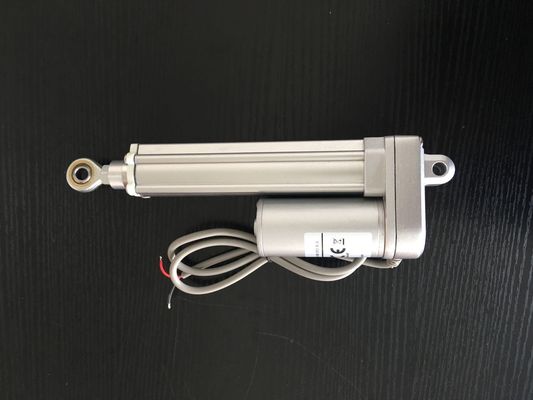

Pictures of electric linear actuator
How do I select electrical actuators?
There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:
Q: What kinds of payment terms are accepted?
A: TT (telegraphic transfer) , Western Union, Private bank account
Q: When the goods can be shipped out after order is placed?
A: Depends on the complex of linear actuator and order quantity, standard sample linear actuator stroke and specifications,
range of production is 7 work days, bulk order linear actuator it requires longer time.
Q: Can you produce linear actuator as per the samples?
A: Our engineers will evaluate whether we can do it or not,
If yes, we will build the molds and fixtures of linear actuator for your confirmation.
If not, we will inform you the result, we may recommend the supplier who can meet your requirements on linear actuator.
Q: May I know the warranty of your linear actuators?
A: For mini size linear actuators, warranty: 12 months
For big size linear actuators, warranty: 15 months
Q: We are interested in being your distributor in our local.
Could you please let me know how can we deal with your linear actuators, and your requirements on us?
A: We are looking forward to being your partner in linear motion field, please contact with our sales team, they will inform you more details.
Our main goal is to satisfy and exceed the expectations of our clients.
We have the capabilities to meet low and high product volume requirements.
